Front Reduction Drive Gear: Adjustment

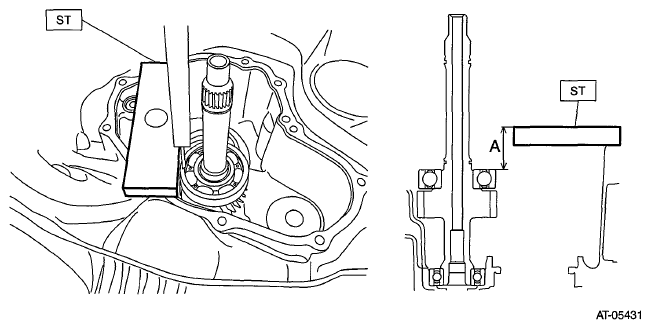

Measure height "A" from the ST upper face to the bearing end face using the ST.
ST 398643600 GAUGE

Fig 1: Measuring Distance Between ST Upper Face And Bearing End Face
Courtesy of SUBARU OF AMERICA, INC.

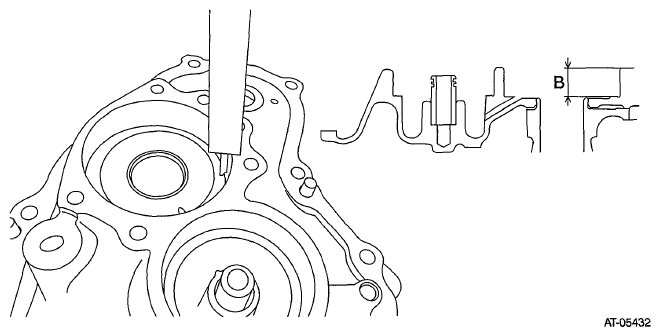

Measure depth "B" from the converter case cover upper face to the bearing catch surface.

Fig 2: Measuring Distance Between Converter Case Cover Upper Face And Bearing Catch Surface
Courtesy of SUBARU OF AMERICA, INC.

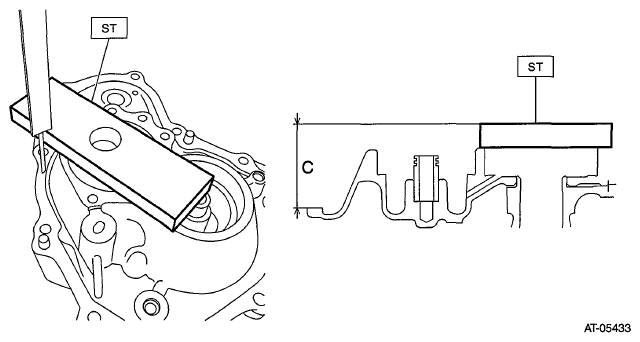

Using the ST, measure height "C" from the ST upper face to the converter case cover mating surface.
ST 398643600 GAUGE

Fig 3: Measuring Distance Between ST Upper Face And Converter Case Cover Mating Surface
Courtesy of SUBARU OF AMERICA, INC.

Calculate clearance "T" using the following formula.

Calculation formula:

T mm = (A - 15) - ((C - 15) - B)

[T in = (A - 0.591) - ((C - 0.591) - B)]

T: Clearance

A: Depth from the ST upper face to the bearing end surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Height from the ST upper face to the converter case cover mating surface

15 mm (0.591 in): Thickness of ST
