Front Reduction Driven Gear: Adjustment

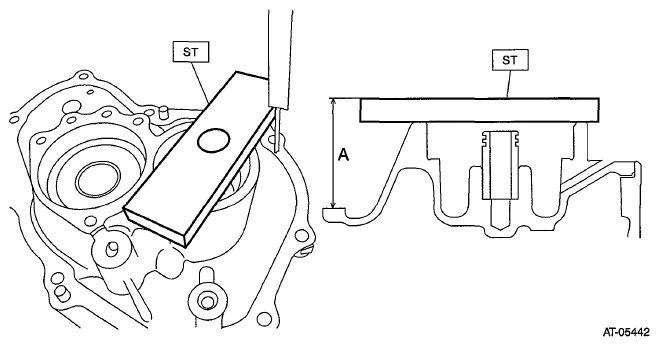

Using the ST, measure height "A" from the ST upper face to the mating surface of the case.
ST 398643600 GAUGE

Fig 1: Measuring Distance Between ST Upper Face And Mating Surface Of Case
Courtesy of SUBARU OF AMERICA, INC.

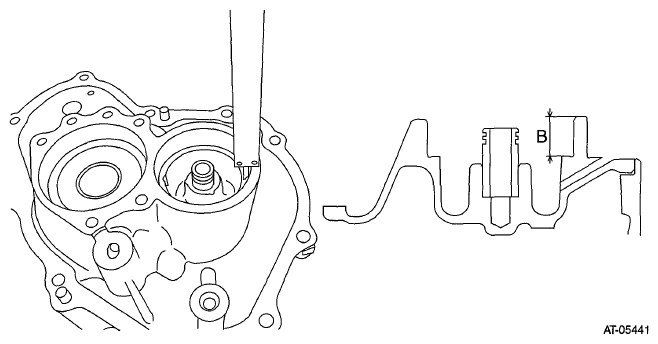

Measure depth "B" from the converter case cover upper face to the bearing catch surface.

Fig 2: Measuring Distance Between Converter Case Cover Upper Face And Bearing Catch Surface
Courtesy of SUBARU OF AMERICA, INC.

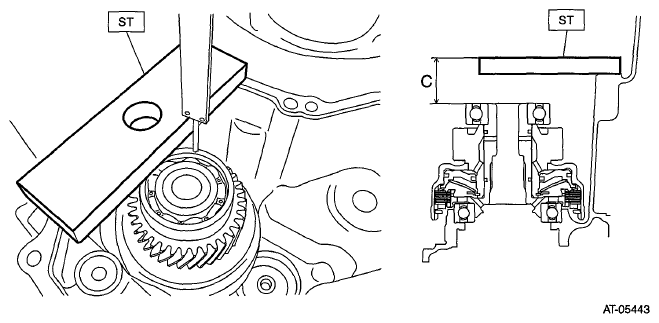

Measure depth "C" from the ST upper face to the bearing end face using the ST.
ST 398643600 GAUGE

Fig 3: Measuring Distance Between ST Upper Face And Bearing End Face
Courtesy of SUBARU OF AMERICA, INC.

Using the following formula, calculate clearance "T" to select a shim.

Formula: T mm = (C - 15) - ((A - 15) - B)

[T in = (C - 0.591) - ((A - 0.591) - B)]

T: Clearance

A: Height from the ST upper face to the converter case mating surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Depth from the ST upper face to the bearing end face

15 mm (0.591 in): Thickness of ST

Select one to two shims so that the total thickness meets the value obtained from above.
