Home >> Subaru >> 2012 >> Outback Limited >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transmission >> General Description >> Components With Torque Specifications >> Transfer And Extension Case

Transfer And Extension Case

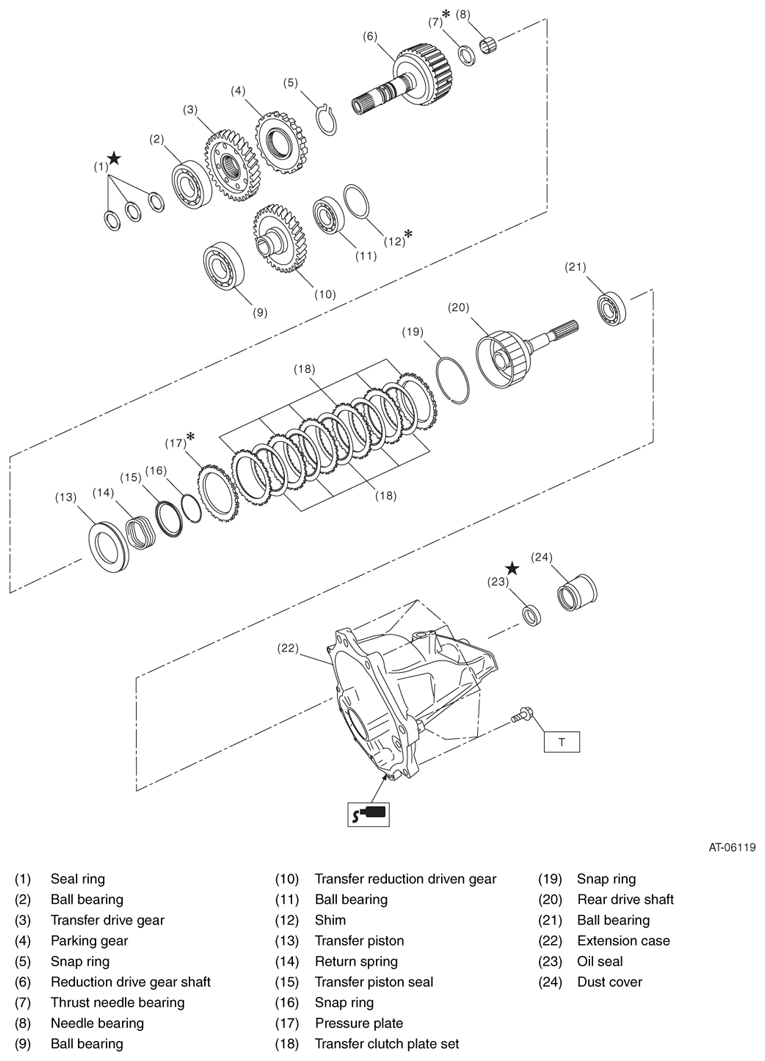

Fig 1: Exploded View Of Transfer And Extension Case

G07913238

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
