Transmission Control Module

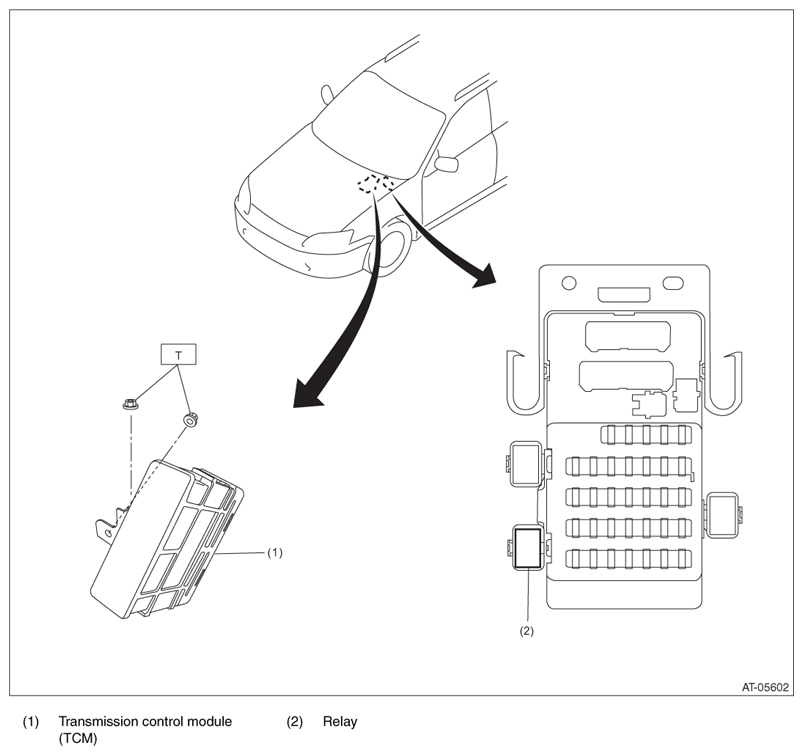

Fig 1: Exploded View Of Transmission Control Module

G07913241

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.75, 5.5)
