Drive Sprocket

  1. Using the ST, install the ball bearing.
    NOTE: Use a new ball bearing.

    ST 499755602 PRESS SNAP RING

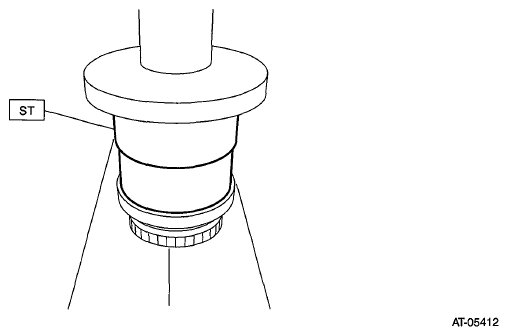

    Fig 1: Identifying Ball Bearing On Drive Sprocket With Press Snap Ring
    G06654752Courtesy of SUBARU OF AMERICA, INC.
