Transfer Clutch: Removal

  1. Remove the transmission assembly from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
  2. Remove the extension case. Refer to , REMOVAL , Extension Case.
  3. Remove the rear drive shaft. Refer to , REMOVAL , Rear Drive Shaft.
  4. Remove the thrust needle bearing and needle bearing.

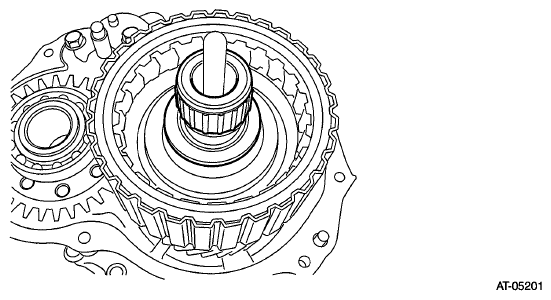

    Fig 1: Identifying Thrust Needle Bearing On Transmission Assembly
    G06654510Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transfer clutch assembly.
    Fig 2: Identifying Transfer Clutch Assembly
    G06654511Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the seal ring from transfer clutch assembly.
    Fig 3: Locating Seal Ring On Transfer Clutch Assembly (View 1 Of 2)
    G06654512Courtesy of SUBARU OF AMERICA, INC.
