Home >> Subaru >> 2013 >> Outback R >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H6DO) >> Electronic Throttle Control Relay >> Removal

Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Refer to REMOVAL .
  3. Remove the electronic throttle control relay.

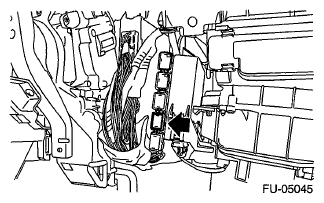

    Fig 1: Locating Electronic Throttle Control Relay
    G06651306Courtesy of SUBARU OF AMERICA, INC.
