Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the trunk trim panel assembly - side on the RH side. (Sedan model) Refer to REMOVAL .
  3. Remove the right side rear quarter trim. (OUTBACK model) Refer to REMOVAL .
  4. Remove the fuel pump control unit.
    • Sedan model

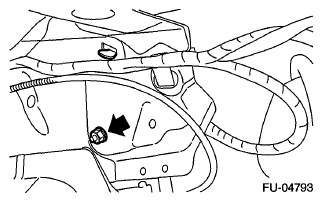

      Fig 1: Locating Fuel Pump Control Unit (Sedan Model)
      G06651309Courtesy of SUBARU OF AMERICA, INC.
    • OUTBACK model

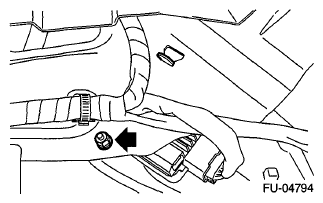

      Fig 2: Locating Fuel Pump Control Unit (OUTBACK Model)
      G06651310Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from fuel pump control unit.
    • Sedan model

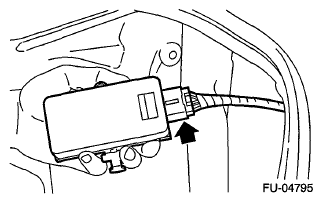

      Fig 3: Locating Fuel Pump Control Unit Connector (Sedan Model)
      G06651311Courtesy of SUBARU OF AMERICA, INC.
    • OUTBACK model

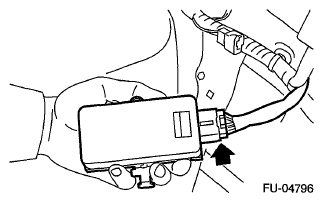

      Fig 4: Locating Fuel Pump Control Unit Connector (OUTBACK Model)
      G06651312Courtesy of SUBARU OF AMERICA, INC.
