Oil Charge Pipe: Installation

  1. Install the oil charge pipe.
    NOTE: Use new gaskets and O-rings.

    Tightening torque:

    38 N.m (3.9 kgf-m, 28.0 ft-lb)

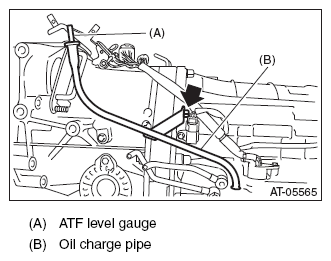

    Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
    G08579272Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connector to the turbine speed sensor 1.
  3. Install the front exhaust pipe. Refer to INSTALLATION .
  4. Install the under cover. Refer to INSTALLATION .
  5. Lower the vehicle.
  6. Connect the ground cable to battery.
