Parking Pawl: Installation

Set the transmission to the N range.
Install the parking pawl, parking pawl shaft and return spring.

Fig 1: Identifying Parking Pawl, Parking Pawl Shaft And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the parking support actuator.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 2: Identifying Front Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, tighten the bolts which tightened in step 3) with specified angle.
NOTE: Do not use extension as much as possible.

Tightening angle:

17°±2°

ST 18854AA000 ANGLE GAUGE

Fig 3: Tightening Bolts Using ST (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Tightening Bolts Using ST (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Make sure that the return spring is sticking out of the parking pole hole.

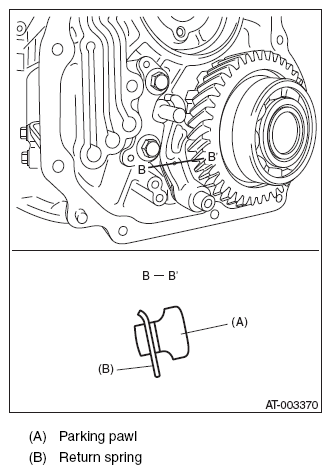

Fig 5: Identifying Parking Pawl And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the front vehicle speed sensor. Refer to INSTALLATION .
Install the center differential carrier. Refer to INSTALLATION .
Install the extension case. Refer to INSTALLATION .
Install the transmission assembly to the vehicle. Refer to INSTALLATION .
