Rear Drive Shaft: Disassembly

  1. Using a press, remove the revolution gear.

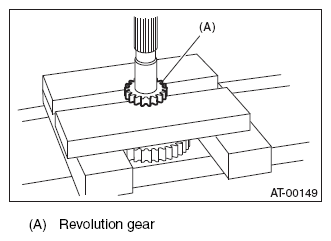

    Fig 1: Removing Revolution Gear Using Press
    G08579294Courtesy of SUBARU OF AMERICA, INC.
  2. Using a press, remove the front and rear side ball bearings and clutch hub.

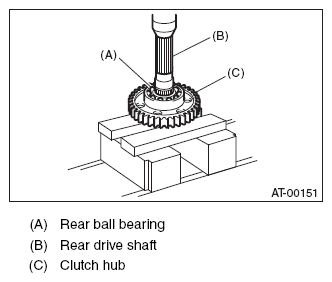

    Fig 2: Removing Front And Rear Side Ball Bearings And Clutch Hub Using Press
    G08579295Courtesy of SUBARU OF AMERICA, INC.
