Reduction Driven Gear: Removal

  1. Remove the transmission assembly from vehicle body. Refer to REMOVAL .
  2. Remove the rear vehicle speed sensor, and separate the extension case from transmission case. Refer to REMOVAL .
  3. Remove the center differential carrier. Refer to REMOVAL .
  4. Set the range select lever to the "P" range.
  5. Using ST1, ST2 and ST3, pull out the reduction driven gear.

    ST1 499737100 PULLER SET

    ST2 18680AA010 GEAR HOLDER

    ST3 18766AA000 SUPPORT PULLER

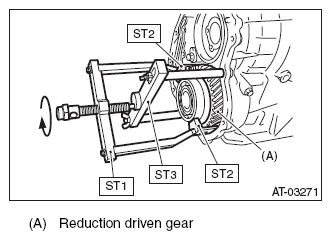

    Fig 1: Pulling Out Reduction Driven Gear Using ST1, ST2 And ST3
    G08579297Courtesy of SUBARU OF AMERICA, INC.
