Oil Temperature Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
  3. Disconnect the connector from oil temperature sensor.

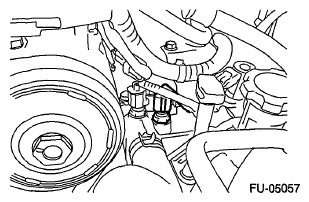

    Fig 1: Identifying Oil Temperature Sensor Connector
    G06651286Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil temperature sensor.
