General Notices & Precautions: Note: Tie-Downs

Tie-downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to the specified locations on the vehicle.

• Tie-down location

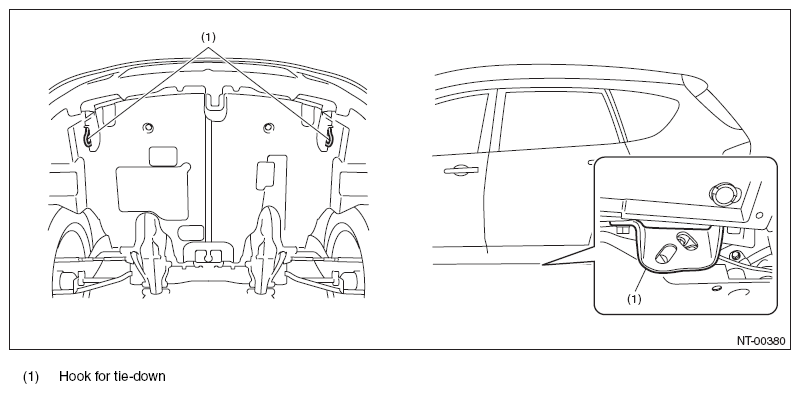

  Fig 1: Identifying Hook For Tie-Down

  Courtesy of SUBARU OF AMERICA, INC.
• Chain direction at tie-down condition
  NOTE:

  Pull the left and right sides in the same direction, and pull front and rear of the vehicle in the opposite direction at the same time.

  Fig 2: Identifying Chain Direction At Tie-Down Condition

  Courtesy of SUBARU OF AMERICA, INC.
• Chain pulling range at tie-down condition
  Fig 3: Identifying Chain Pulling Range At Tie-Down Condition

  Courtesy of SUBARU OF AMERICA, INC.
• Vehicle sinking volume at tie-down condition Measure the distance between the highest tire point and highest arch point before and after tie-down. Difference of measured values (sinking volume) should be within 50 mm (1.97 in) and make sure to fix the vehicle securely.
  Fig 4: Identifying Distance Between Highest Tire Point And Highest Arch Point

  Courtesy of SUBARU OF AMERICA, INC.
