Oil Pump & Front Brake

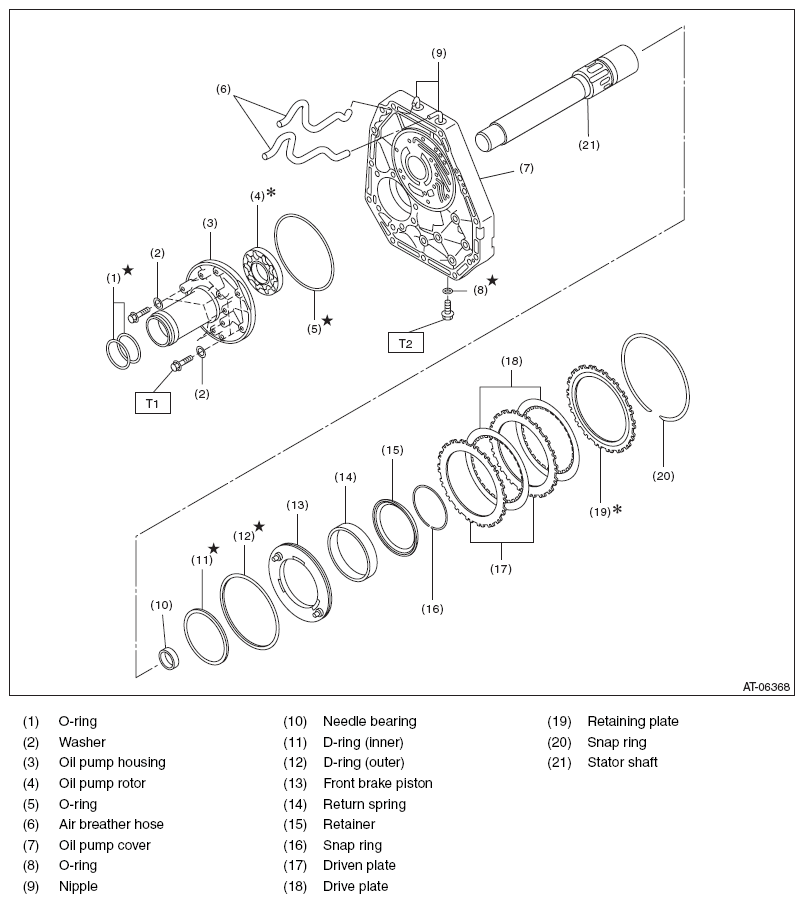

Fig 1: Oil Pump, Front Brake And Related Replacement Components With Torque Specifications
G08544961Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 13 (1.3, 9.6)
