Oil Charge Pipe: Installation

Install the oil charge pipe.
NOTE: Use new bolts and O-rings.

Tightening torque:

38 N.m (3.9 kgf-m, 28.0 ft-lb)

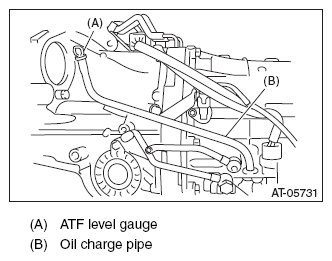

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the turbine speed sensor 1 and harness, and then connect the connector.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 2: Identifying Turbine Speed Sensor 1 Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
Install the under cover.
Lower the vehicle.
Connect the battery ground terminal.
