Oil Charge Pipe: Removal

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the under cover.
  4. Remove the front exhaust pipe. < Ref. to REMOVAL , Front Exhaust Pipe. >
  5. Disconnect the connector from turbine speed sensor 1.
    Fig 1: Identifying Turbine Speed Sensor 1 Connector
    G08545028Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the turbine speed sensor 1 connector mounting bolt and rotate the sensor by 180°.

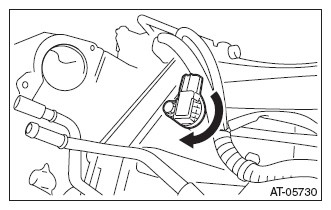

    Fig 2: Rotating Turbine Speed Sensor 1 Connector Mounting Bolt
    G08545098Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the oil charge pipe, and then remove the O-ring from flange side.

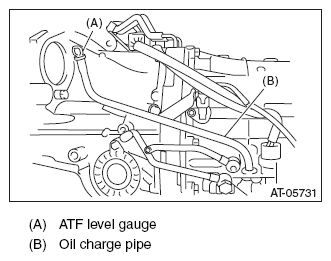

    Fig 3: Identifying ATF Level Gauge And Oil Charge Pipe
    G08545099Courtesy of SUBARU OF AMERICA, INC.
