Rear Drive Shaft: Assembly

Assemble in the reverse order of disassembly.

NOTE:
  • Use new ball bearings and revolution gear.
  • Make sure the clutch hub is facing the correct direction.

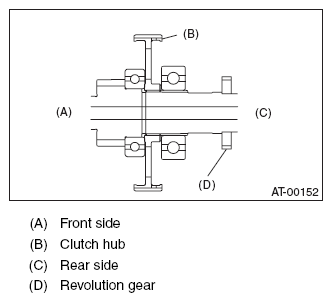

Fig 1: Identifying Revolution Gear, Front Side, Clutch Hub And Rear Side
G08545124Courtesy of SUBARU OF AMERICA, INC.
