Rear Drive Shaft: Disassembly

  1. Using a press, remove the revolution gear.

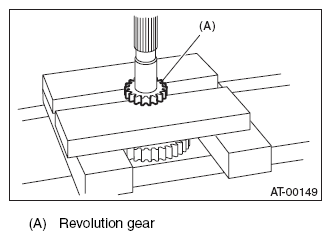

    Fig 1: Identifying Revolution Gear
    G08545122Courtesy of SUBARU OF AMERICA, INC.
  2. Using a press, remove the front and rear side ball bearings and clutch hub.

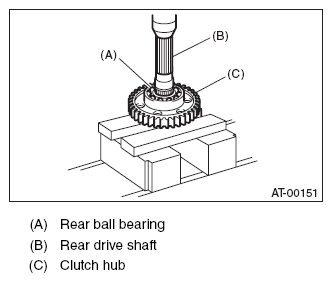

    Fig 2: Identifying Rear Ball Bearing, Rear Drive Shaft And Clutch Hub
    G08545123Courtesy of SUBARU OF AMERICA, INC.
