AT Shift Lock Control System: Wiring Diagram

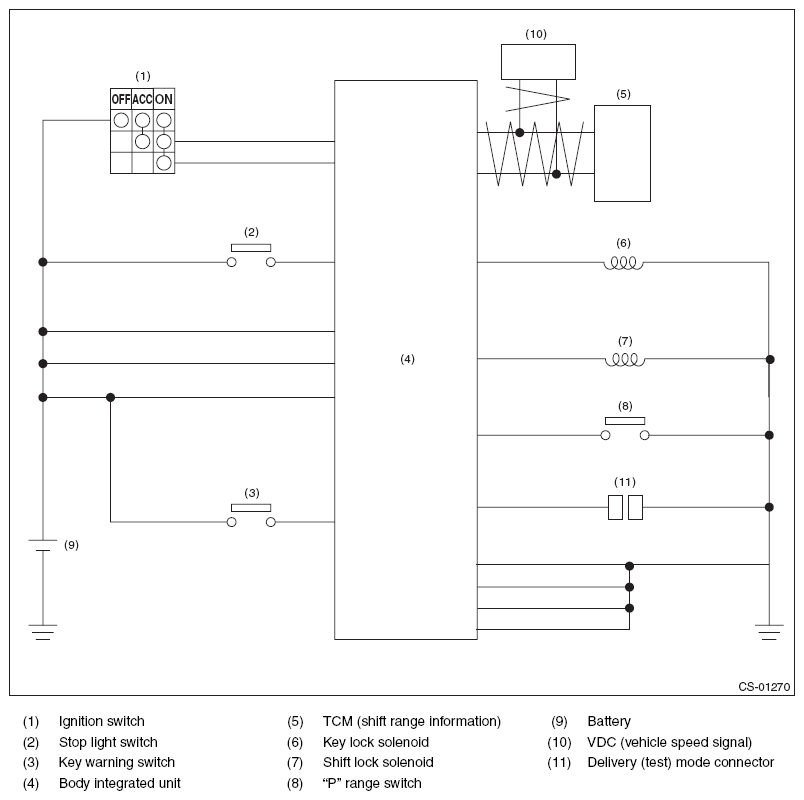

Fig 1: AT Shift Lock Control System - Wiring Diagram

G08544891

Courtesy of SUBARU OF AMERICA, INC.
