Select Lever: Removal

  1. Disconnect the ground cable from battery.
  2. Shift the select lever to "N" range.
  3. Lift up the vehicle.
  4. Remove the rear exhaust pipe and muffler. < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >
  5. Remove the heat shield cover.
  6. Remove the cable from arm assembly.

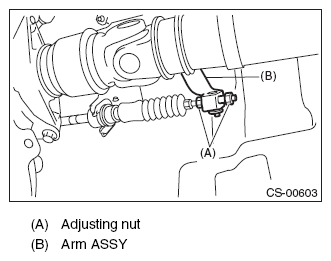

    Fig 1: Identifying Arm ASSY And Adjusting Nut
    G08544895Courtesy of SUBARU OF AMERICA, INC.
  7. Raise the claw of clamp and remove the cable.

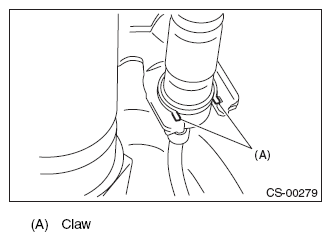

    Fig 2: Identifying Lever Clamp Claw
    G08544896Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box. < Ref. to REMOVAL , Console Box. >
  10. Remove the center console. < Ref. to REMOVAL , Center Console. >
  11. Remove all harnesses from the select lever.
    Fig 3: Identifying Connector Harnesses
    G05031898Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the connectors, and then remove the four bolts to take out the select lever assembly from vehicle body.
    Fig 4: Locating Select Lever Assembly Bolts
    G05031899Courtesy of SUBARU OF AMERICA, INC.
