Model Without Push Button Ignition Switch

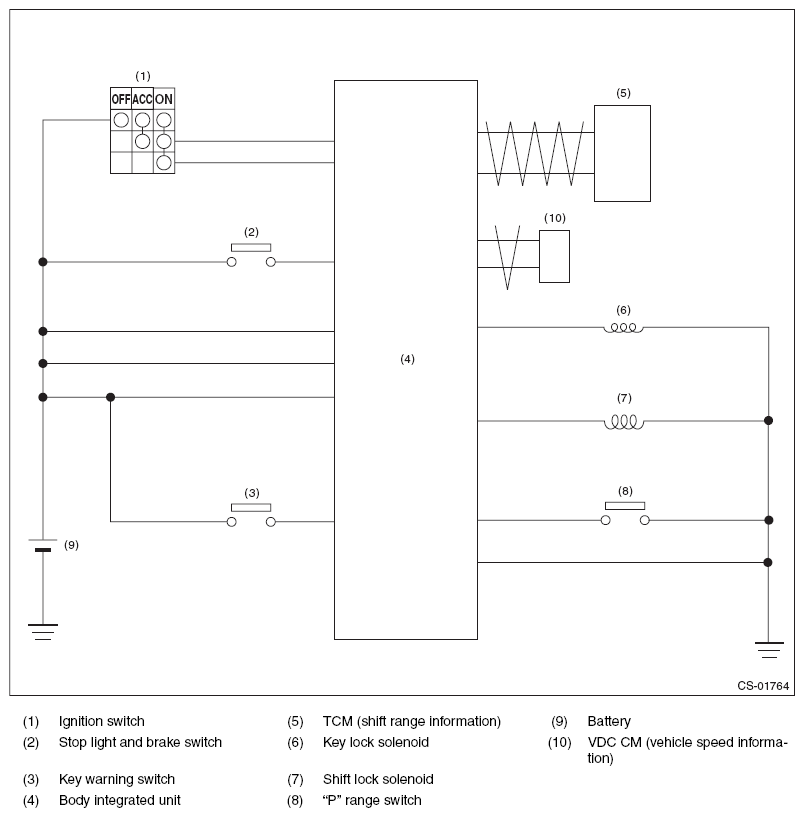

Fig 1: Model Without Push Button Ignition Switch - Wiring Diagram
G10267797Courtesy of SUBARU OF AMERICA, INC.
