Exhaust Side

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the under cover. <Ref. to REMOVAL , Front Under Cover.>
  4. Remove the engine harness cover. (right side only.)
    Fig 1: Removing Engine Harness Cover
    G06344564Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clip holding the engine harness. (Left side only)
    Fig 2: Locating Engine Harness Clip
    G10264720Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect connector (A) from the camshaft position sensor, and remove the camshaft position sensor from under the cylinder head.
    • RH side

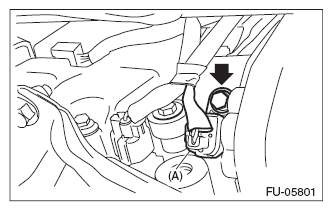

      Fig 3: Locating Camshaft Position Sensor Bolt (RH Side)
      G08538751Courtesy of SUBARU OF AMERICA, INC.
    • LH side

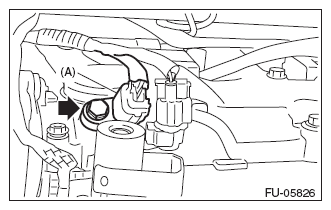

      Fig 4: Locating Camshaft Position Sensor Bolt (LH Side)
      G08538752Courtesy of SUBARU OF AMERICA, INC.
