Home >> Subaru >> 2015 >> WRX STI >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (STI) >> Engine Coolant Temperature Sensor >> Removal

Engine Coolant Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the generator. <Ref. to REMOVAL , Generator.>
  3. Drain engine coolant. <Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
  4. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.

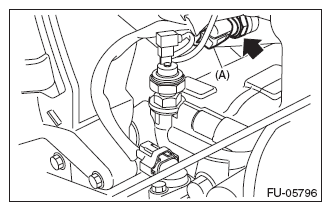

    Fig 1: Locating Engine Coolant Temperature Sensor
    G08538734Courtesy of SUBARU OF AMERICA, INC.
