Pulsation Damper Assembly: Disassembly

Remove the pulsation damper and fuel pipe gasket from the fuel by-pass pipe.

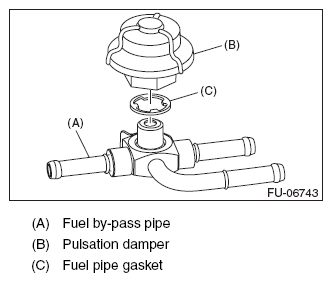

Fig 1: Identifying Fuel By-Pass Pipe And Fuel Pipe Gasket
G10264968Courtesy of SUBARU OF AMERICA, INC.
