General Description
>>
Components With Torque Specifications
Components With Torque Specifications

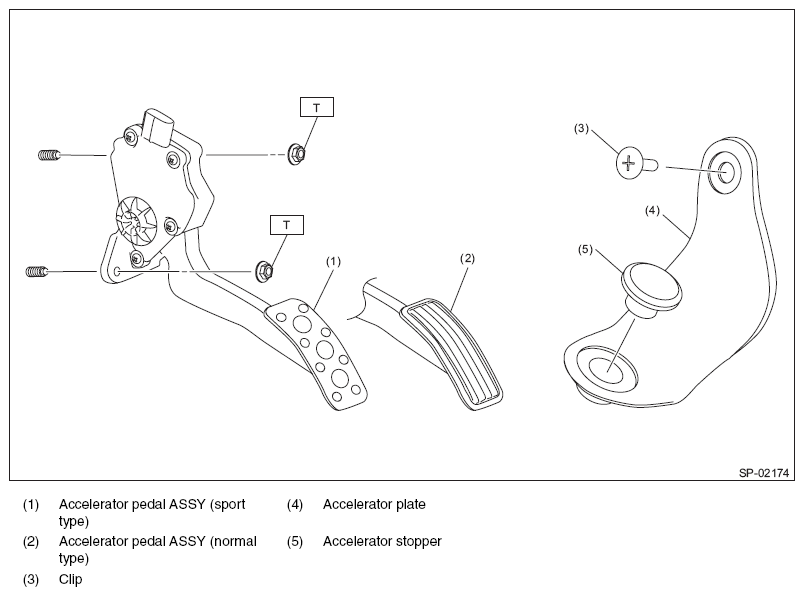

Fig 1: Identifying Accelerator Pedal Assembly Bolts
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
