Crankshaft Position Sensor: Removal

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

Fig 1: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

Fig 2: Identifying Air Cleaner Case (Rear) And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.

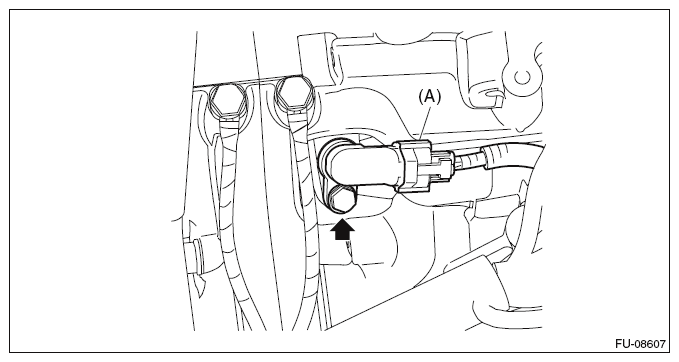

Fig 3: Identifying Crankshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
