Accelerator Pedal: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

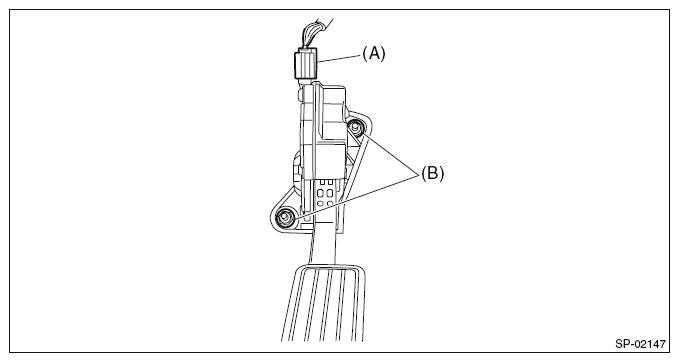

    Fig 1: Identifying Accelerator Pedal Assembly Nut
    G10263085Courtesy of SUBARU OF AMERICA, INC.
