Engine Wiring Harness: Removal

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Remove the fuel insulator. < Ref. to REMOVAL , Fuel Insulator. >
Remove the engine control module (ECM). < Ref. to REMOVAL , Engine Control Module (ECM). >
Disconnect the connector from the engine.
- Structural diagram 1

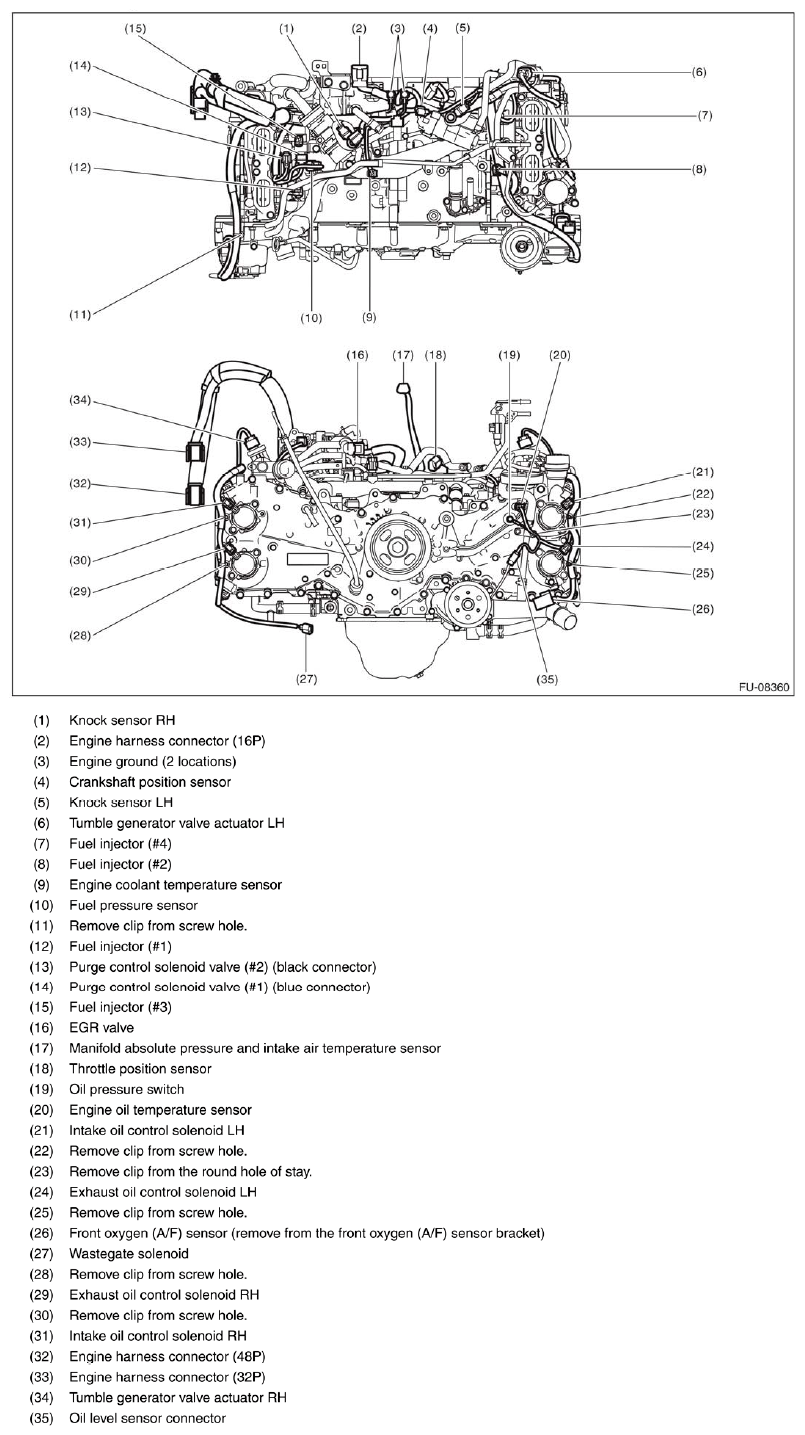

  Fig 1: Engine Wiring Harness - Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

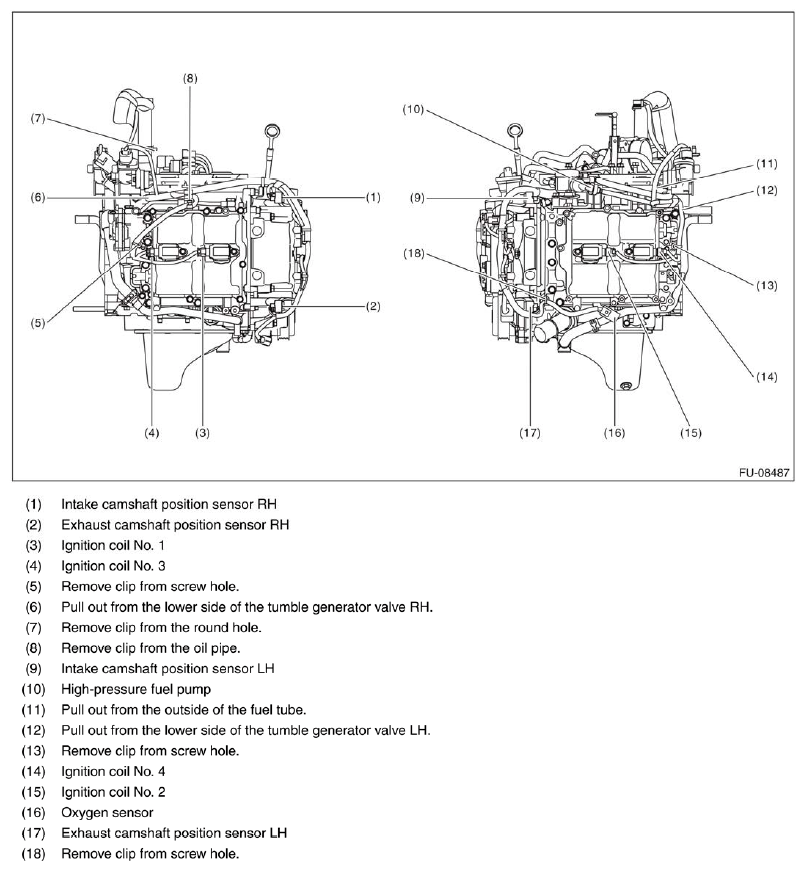

  Fig 2: Engine Wiring Harness - Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 3: Locating Engine Wiring Harness Bolts
Courtesy of SUBARU OF AMERICA, INC.
