Model With Push Button Ignition Switch

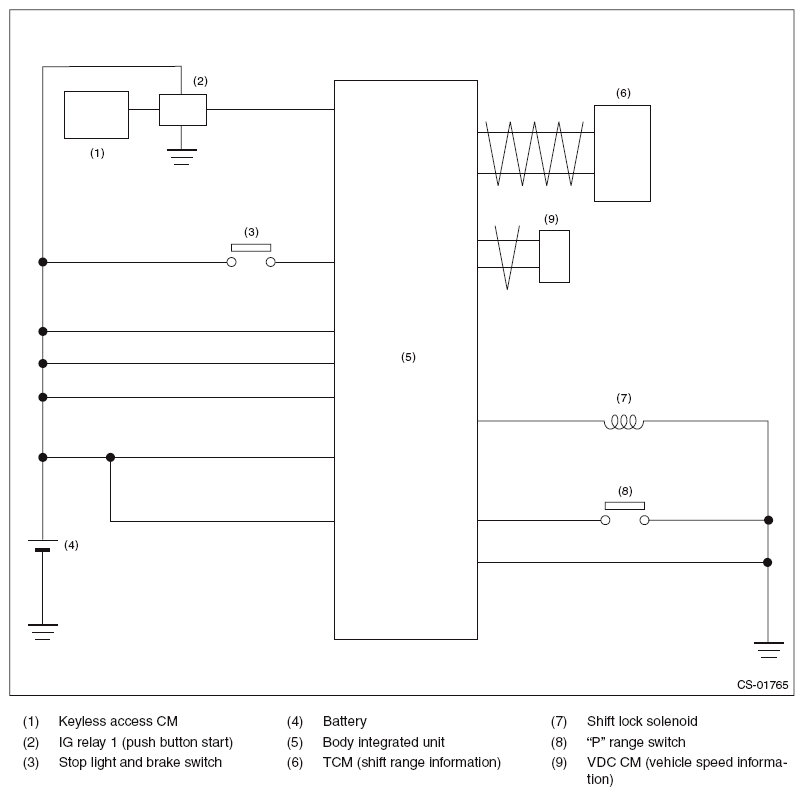

Fig 1: AT Shift Lock Control System - Wiring Diagram (Model With Push Button Ignition Switch)
G10292855Courtesy of SUBARU OF AMERICA, INC.
