Home >> Subaru >> 2016 >> WRX Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> AT Shift Lock Control System >> Wiring Diagram >> Model Without Push Button Ignition Switch

Model Without Push Button Ignition Switch

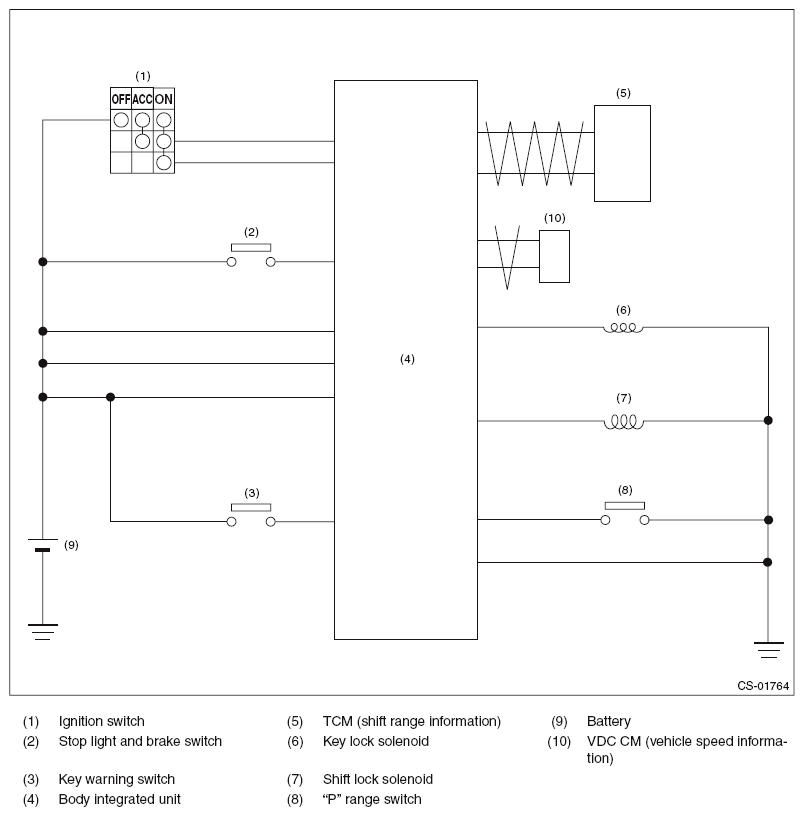

Fig 1: AT Shift Lock Control System - Wiring Diagram (Model Without Push Button Ignition Switch)

G10292854

Courtesy of SUBARU OF AMERICA, INC.
