Subaru
>>
2017
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel Injection System
>>
(FA20/port fuel injection)
>>
Exploded view
Exploded view

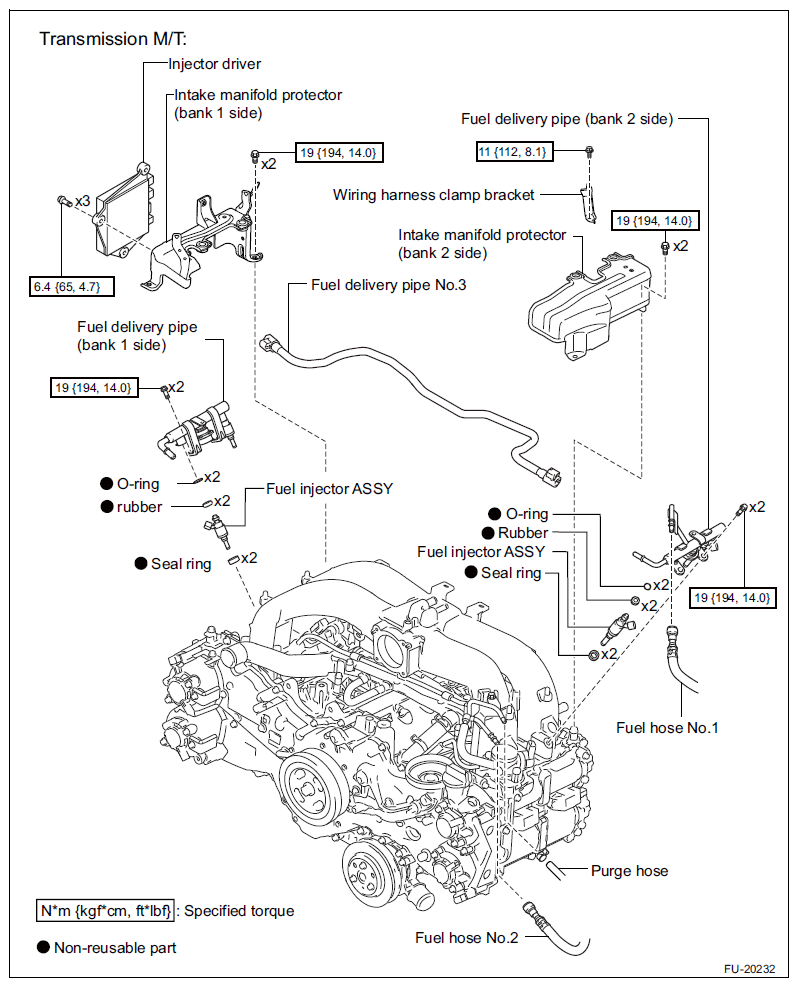

Fig 1: Exploded View Of Injector Assembly - FA20/Port Fuel Injection (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Injector Assembly - FA20/Port Fuel Injection (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
