Circuit figure

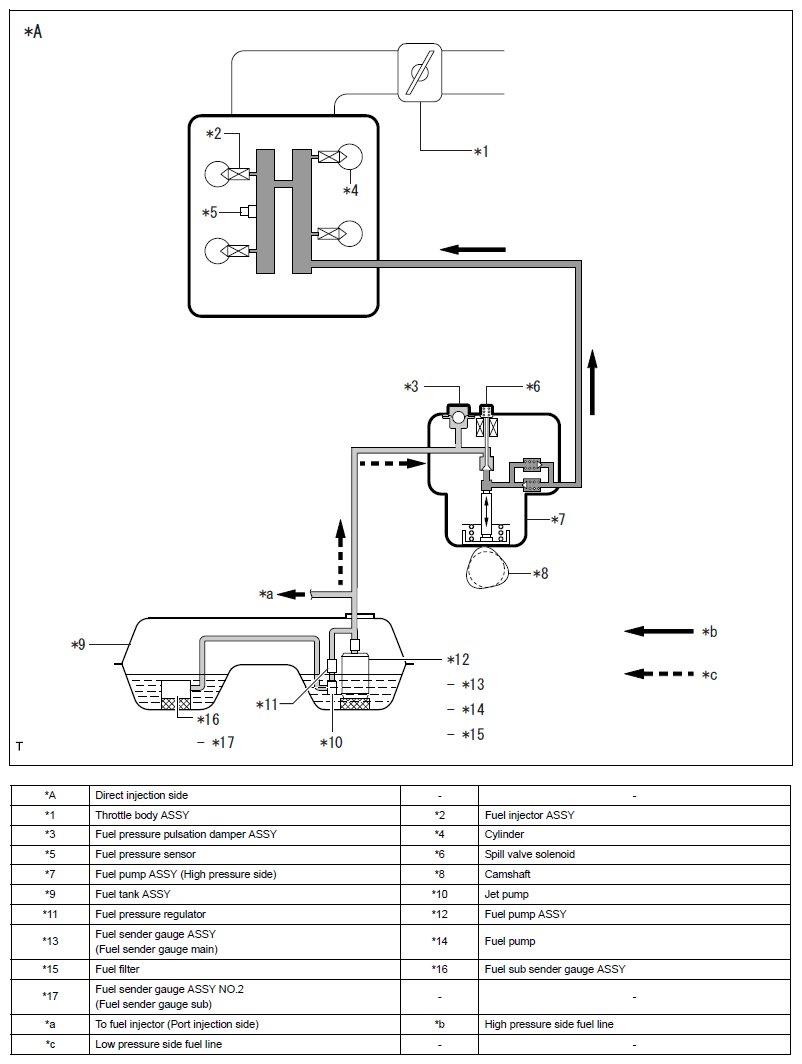

Fig 1: Fuel System Circuit Diagram (1 Of 3)
G11258727Courtesy of SUBARU OF AMERICA, INC.

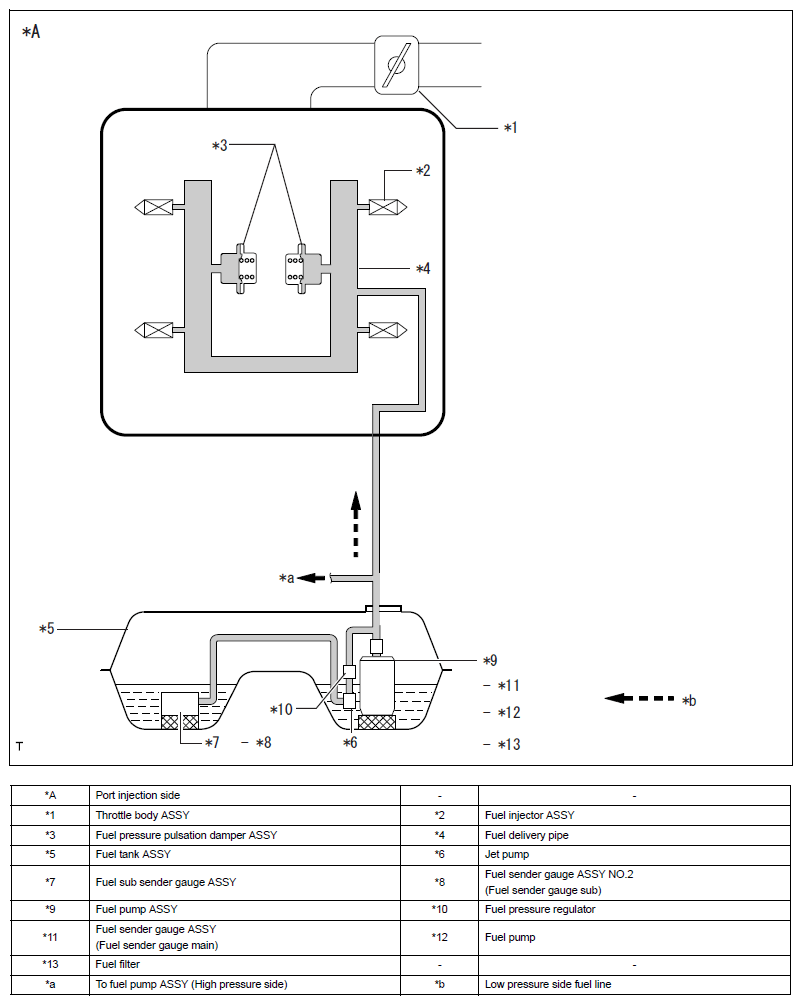

Fig 2: Fuel System Circuit Diagram (2 Of 3)
G11258728Courtesy of SUBARU OF AMERICA, INC.

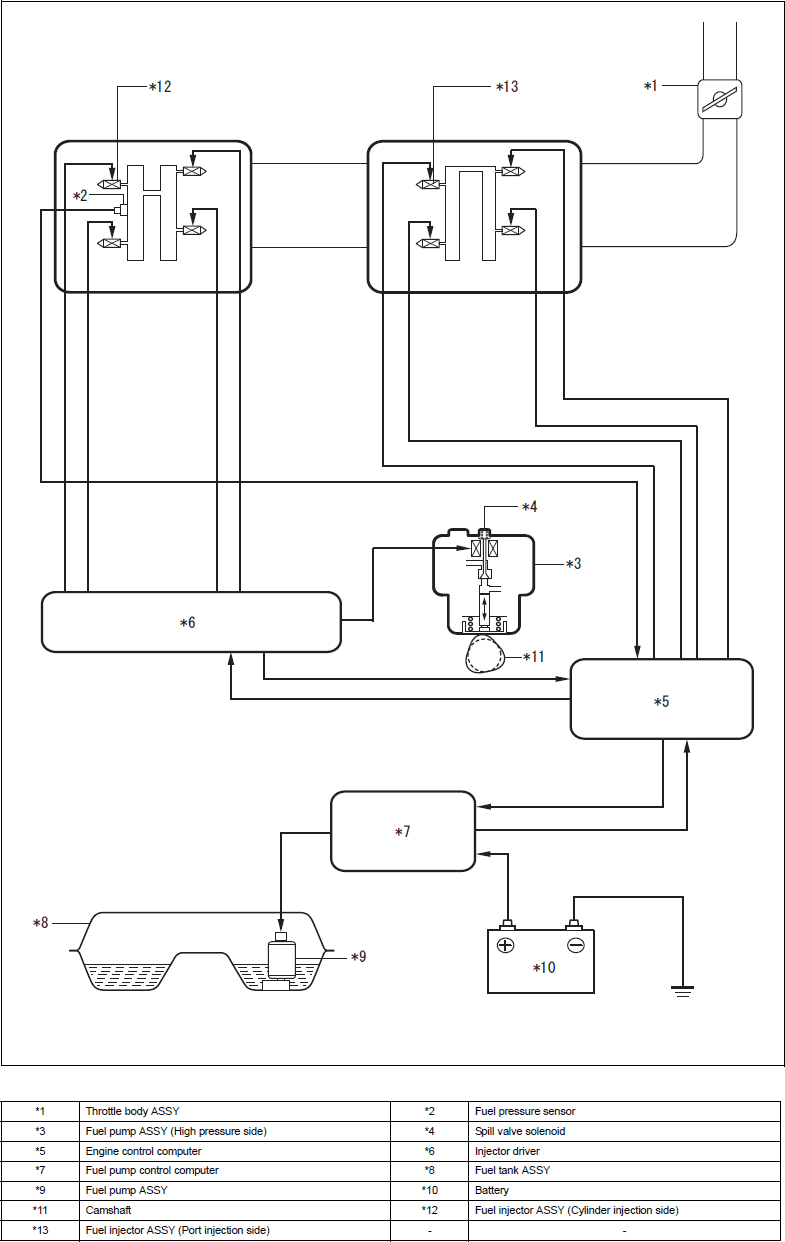

Fig 3: Fuel System Circuit Diagram (3 Of 3)
G11258729Courtesy of SUBARU OF AMERICA, INC.
  1. Fuel injector ASSY (Cylinder injection side)

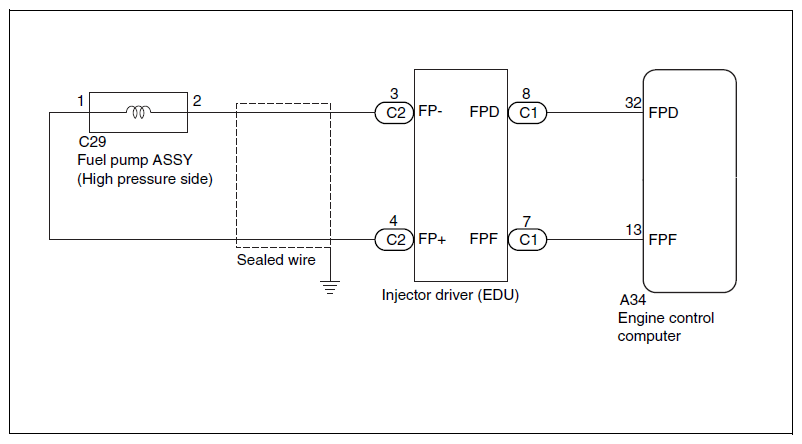

    Fig 4: Fuel Injector Assembly (Cylinder Injection Side) Circuit Diagram (1 Of 2)
    G11258730Courtesy of SUBARU OF AMERICA, INC.

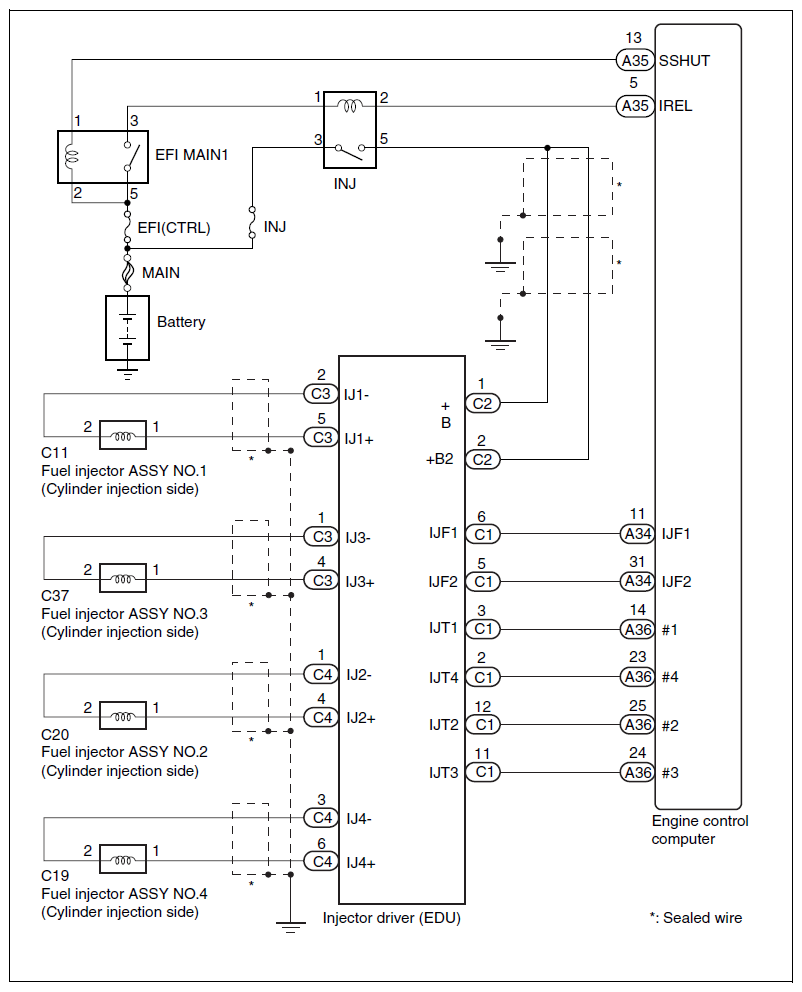

    Fig 5: Fuel Injector Assembly (Cylinder Injection Side) Circuit Diagram (2 Of 2)
    G11258731Courtesy of SUBARU OF AMERICA, INC.
  2. Fuel injector ASSY (Port injection side)

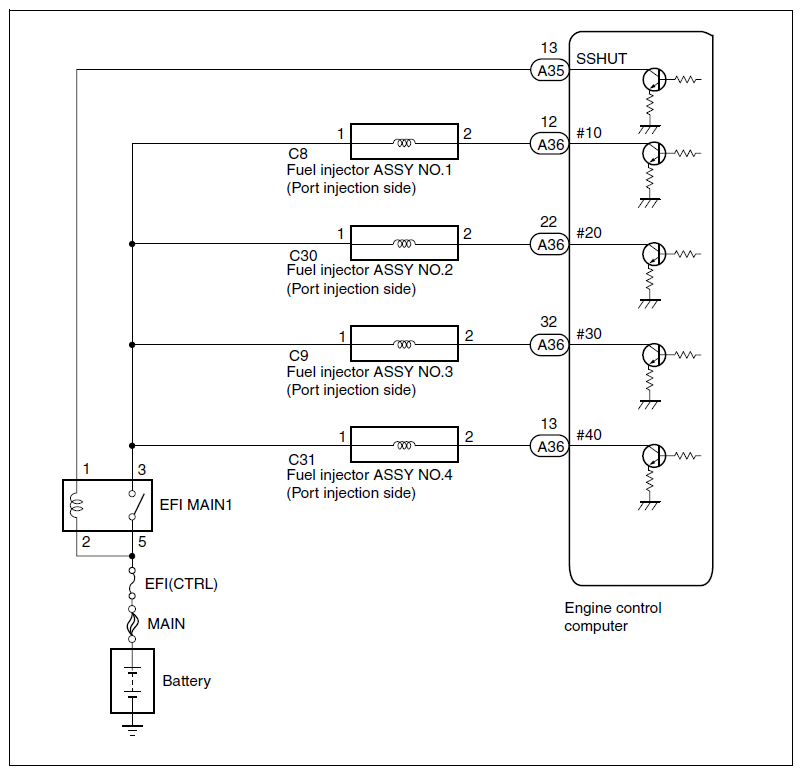

Fig 6: Fuel Injector Assembly (Port Injection Side) Circuit Diagram (1 Of 2)
G11258732Courtesy of SUBARU OF AMERICA, INC.

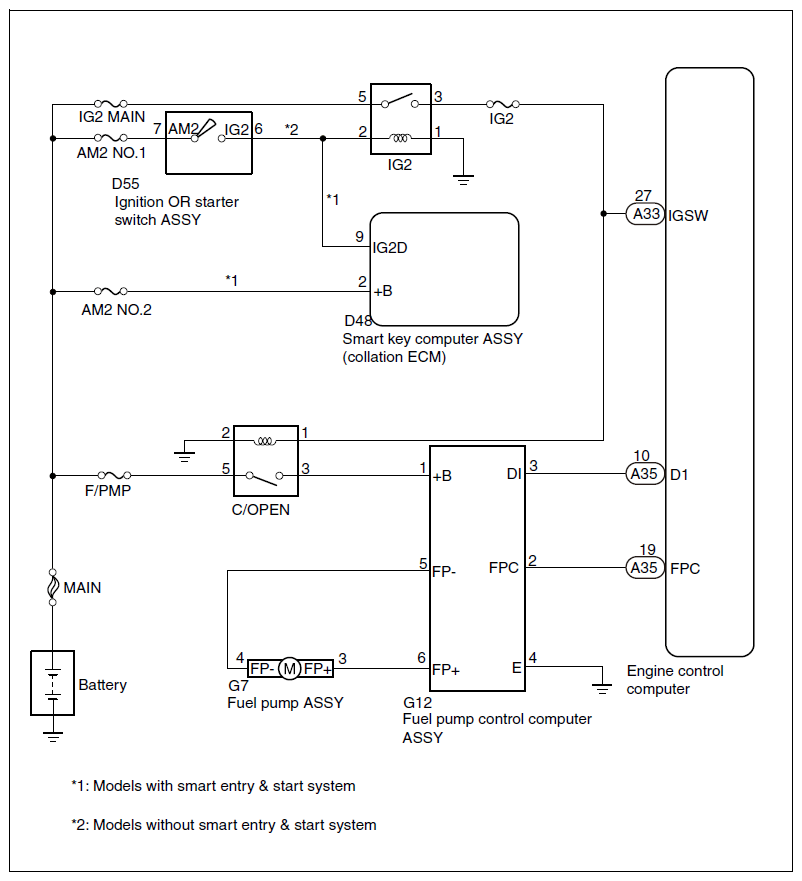

Fig 7: Fuel Injector Assembly (Port Injection Side) Circuit Diagram (2 Of 2)
G11258733Courtesy of SUBARU OF AMERICA, INC.
