Parts location: Notes

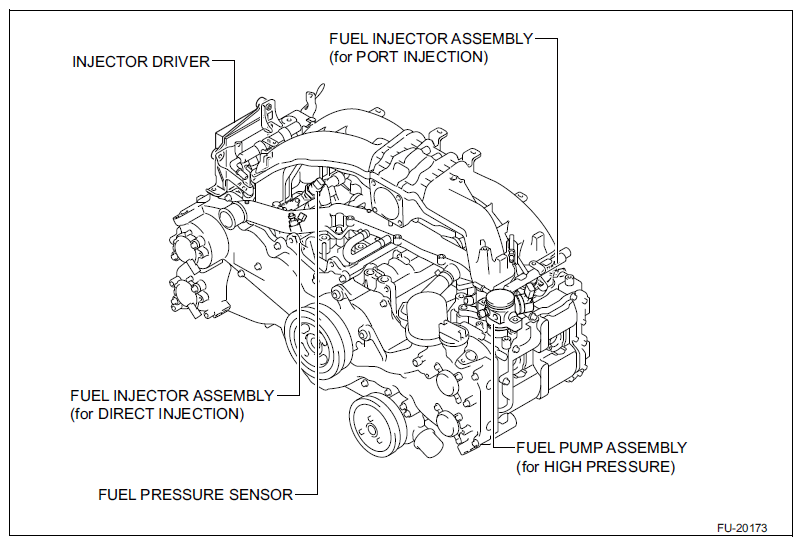

Fig 1: Identifying Fuel System Related Components (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

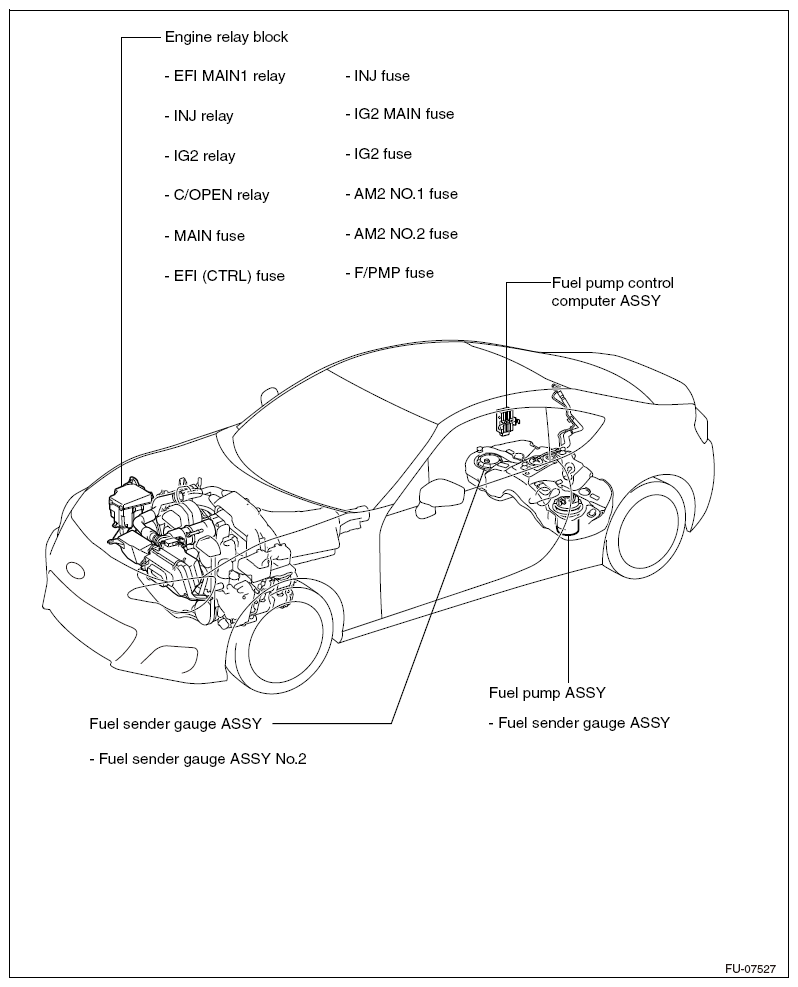

Fig 2: Identifying Fuel System Related Components (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

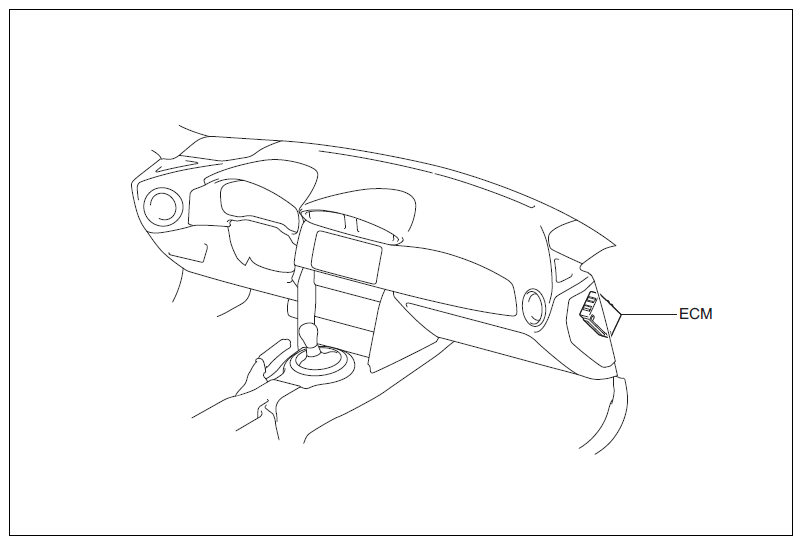

Fig 3: Identifying Fuel System Related Components (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
