Engine control computer (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to Working precautions and notes )
  2. Removal of the instrument side panel RH (Refer to Removal )
  3. Removal of glove compartment door ASSY (Refer to Removal )
  4. Removal of control module relay ASSY (without smart entry) (Refer to Key lock unit )
  5. Removal of engine control computer
    1. Disconnect 4 connectors for engine control computer.
      Fig 1: Locating Engine Control Computer Connectors
      G08553998Courtesy of SUBARU OF AMERICA, INC.
    2. Remove 2 nuts, and remove the engine control computer.

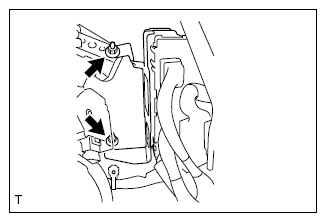

    Fig 2: Locating Engine Control Computer Nuts
    G11258357Courtesy of SUBARU OF AMERICA, INC.
  6. Removal of engine control computer bracket
    1. Release 2 claws, and remove the engine control computer bracket.

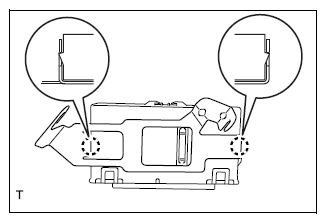

    Fig 3: Identifying Engine Control Computer Bracket Claws
    G11258358Courtesy of SUBARU OF AMERICA, INC.
