Data Communication Module

CAUTION:
  • After installing the center grille assembly, check that the air vent grille of the center grille assembly is inserted correctly into the air vent duct.
  • Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM".
  1. Install each part in the reverse order of removal.
    NOTE: Align the positioning pin (a) of the data communication module with the positioning hole of the audio assembly or navigation assembly.

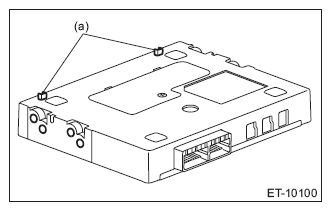

    Fig 1: Aligning Positioning Pin Of Data Communication Module With Hole
    G10309168Courtesy of SUBARU OF AMERICA, INC.
  2. Perform the registration if the data communication module is replaced with a new part. Ref. to OPERATION , Telematics System.
  3. Check LED lighting status of overhead console or stereo camera cover assembly. Ref. to LED ILLUMINATION STATUS LIST , CHECK, Check List for Interview.
