Engine Wiring Harness: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
  3. Remove the fuel insulator. <Ref. to REMOVAL , Fuel Insulator.>
  4. Remove the engine control module (ECM). <Ref. to REMOVAL , Engine Control Module (ECM).>
  5. Disconnect the connector from the engine.
    • Structural diagram 1

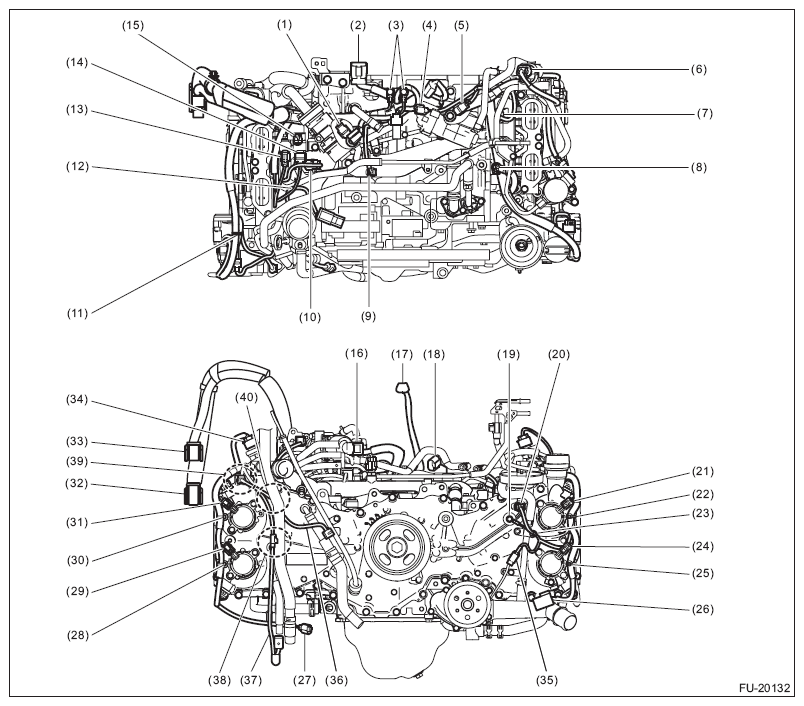

      Fig 1: Engine Wiring Harness Structural Diagram 1
      G11574591Courtesy of SUBARU OF AMERICA, INC.

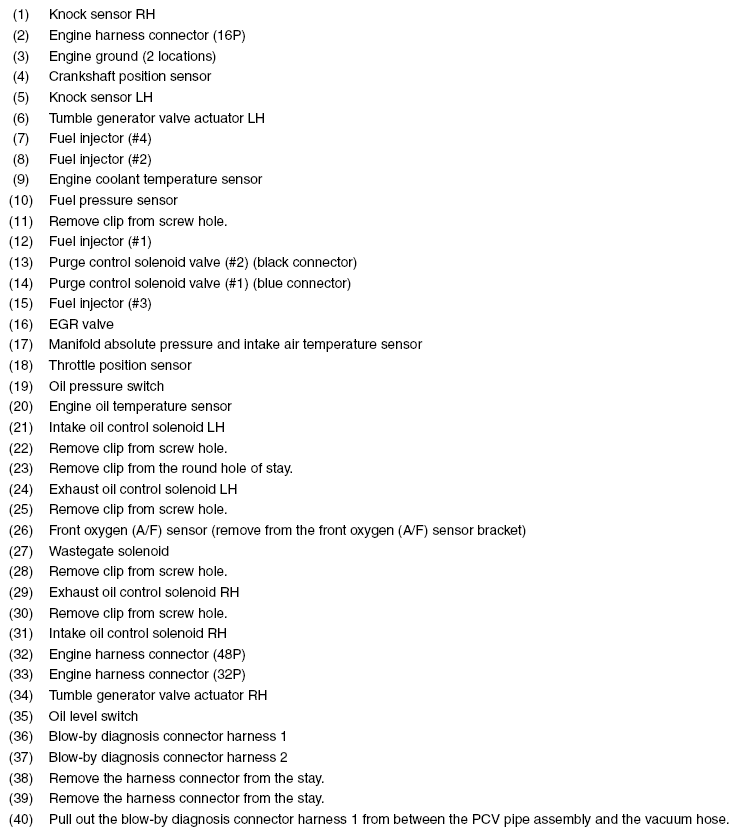

      Fig 2: Engine Wiring Harness Related Parts
      G11574592Courtesy of SUBARU OF AMERICA, INC.
    • Structural diagram 2

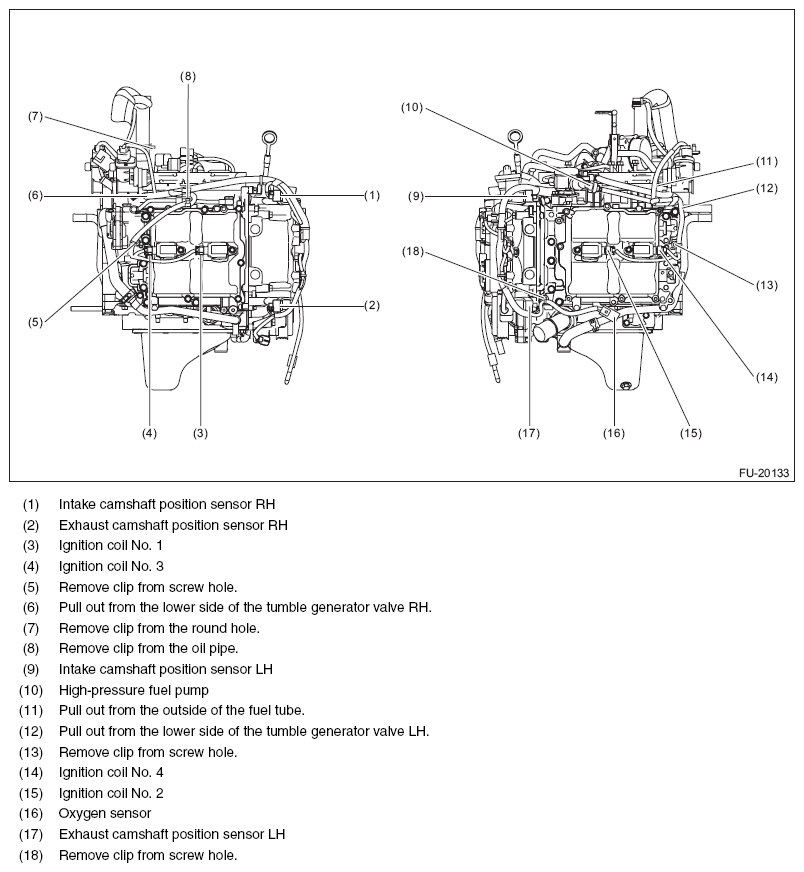

    Fig 3: Engine Wiring Harness Structural Diagram 2
    G11574593Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the engine wiring harness.
Fig 4: Locating Engine Wiring Harness Bolts
G10266194Courtesy of SUBARU OF AMERICA, INC.
