Fuel Injector Relay: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the fuel injector relay from main fuse box.

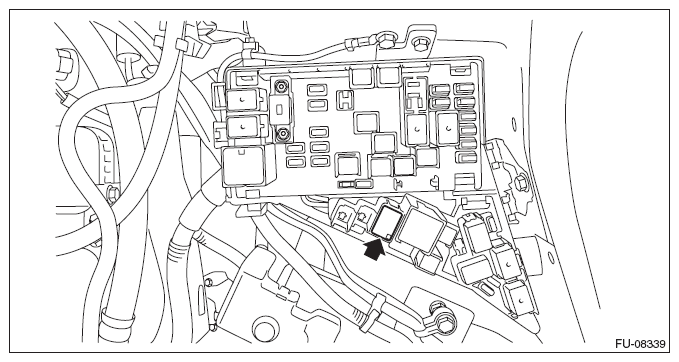

Fig 1: Locating Fuel Injector Relay Of Main Fuse Box
G10266272Courtesy of SUBARU OF AMERICA, INC.
