Rear Oxygen Sensor: Inspection

  1. Check that the rear oxygen sensor has no deformation, cracks or other damages.
  2. Measure the resistance between rear oxygen sensor terminals.

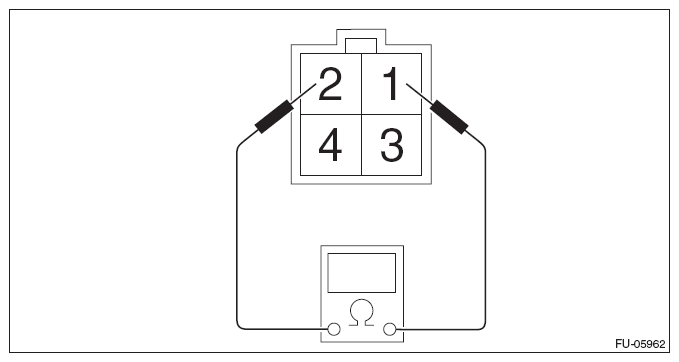

Fig 1: Measuring Resistance Between Rear Oxygen Sensor Terminals
G08315454Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 13.0+1.5-1.3 Ω (when 20°C (68°F))
