Engine Wiring Harness

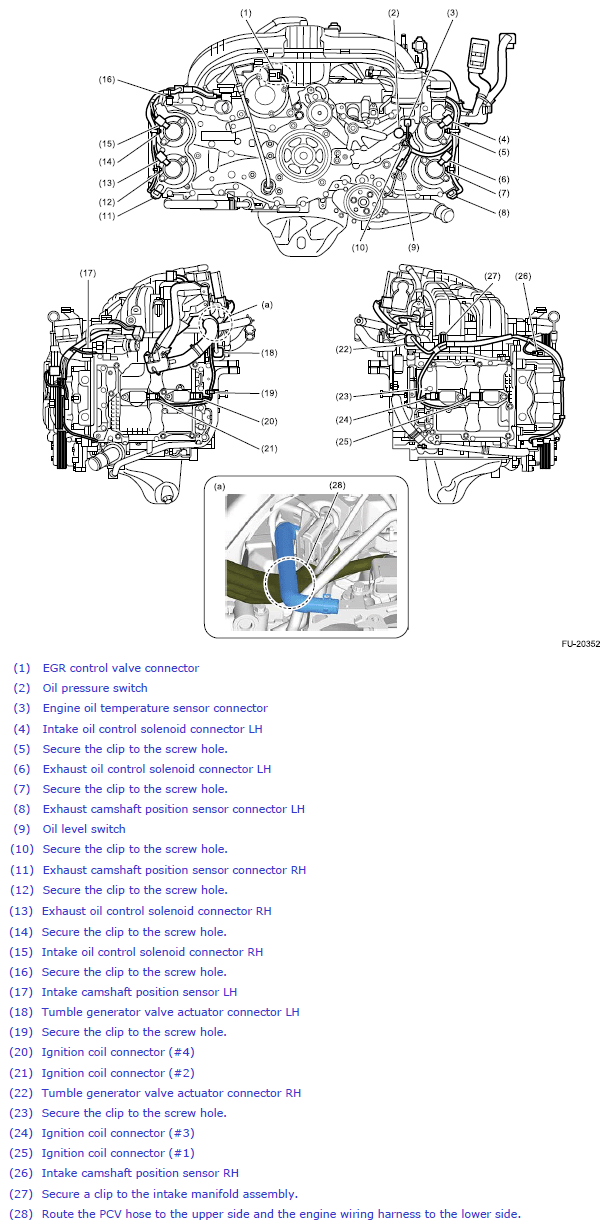

Structural diagram 1

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 19 (1.9, 14.0)

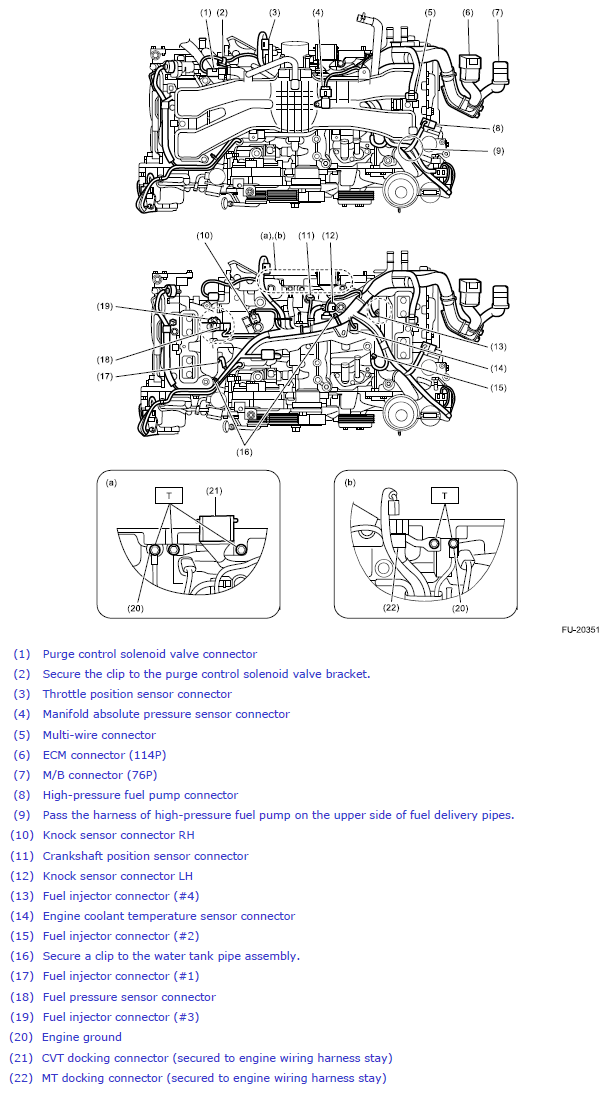

Structural diagram 2

Courtesy of SUBARU OF AMERICA, INC.
