Throttle Body

Crosstrek model

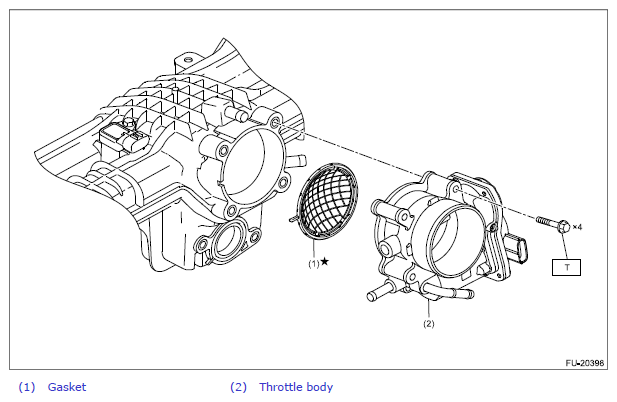

Fig 1: Locating Throttle Body Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T 8 (0.8, 5.9)
