LH Side

  1. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Battery>REMOVAL .
  2. Remove the engine wiring harness and the battery cables from the bracket.
    G11252868Courtesy of SUBARU OF AMERICA, INC.

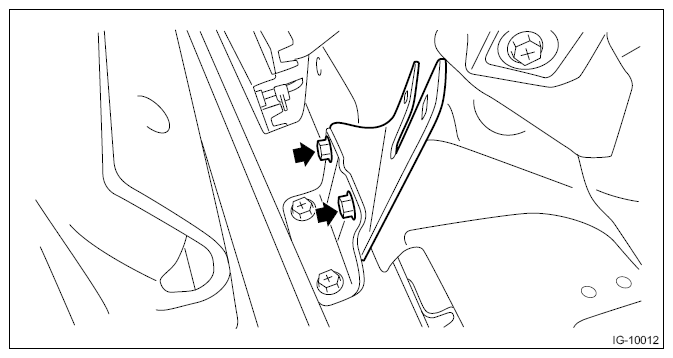

  3. Separate the bracket.
    G11253691Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318929Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ignition coil.
    G11253693Courtesy of SUBARU OF AMERICA, INC.
