Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transmission Control Systems >> AT Shift Lock Control System >> Wiring Diagram >> Model Without Push Button Ignition Switch

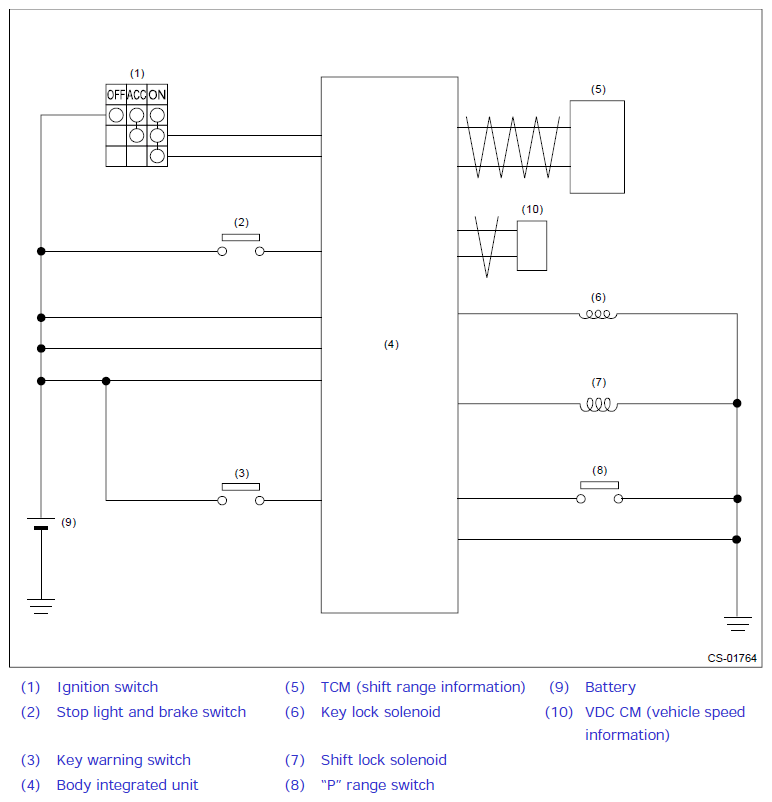

Model Without Push Button Ignition Switch

G12448276
