Oil Control Solenoid: Removal: Intake
- RH SIDE.
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

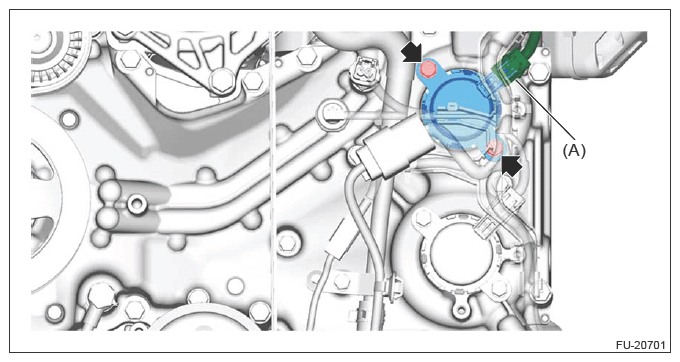

- Disconnect the connector (A) and remove the oil control solenoid.
- LH SIDE.
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .

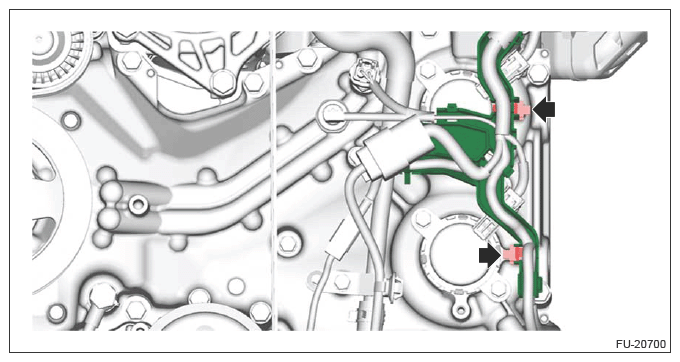

- Remove the clip securing the engine wiring harness.

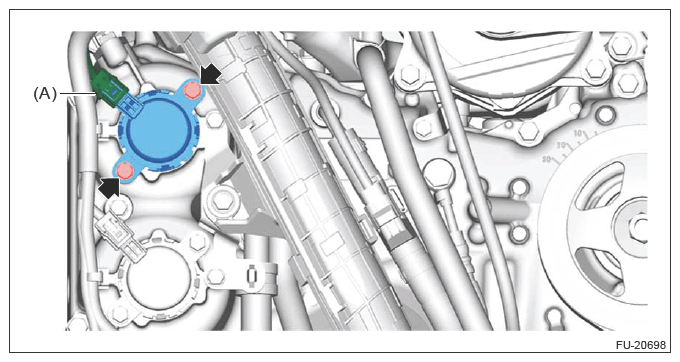

- Disconnect the connector (A) and remove the oil control solenoid.
