Air Intake System

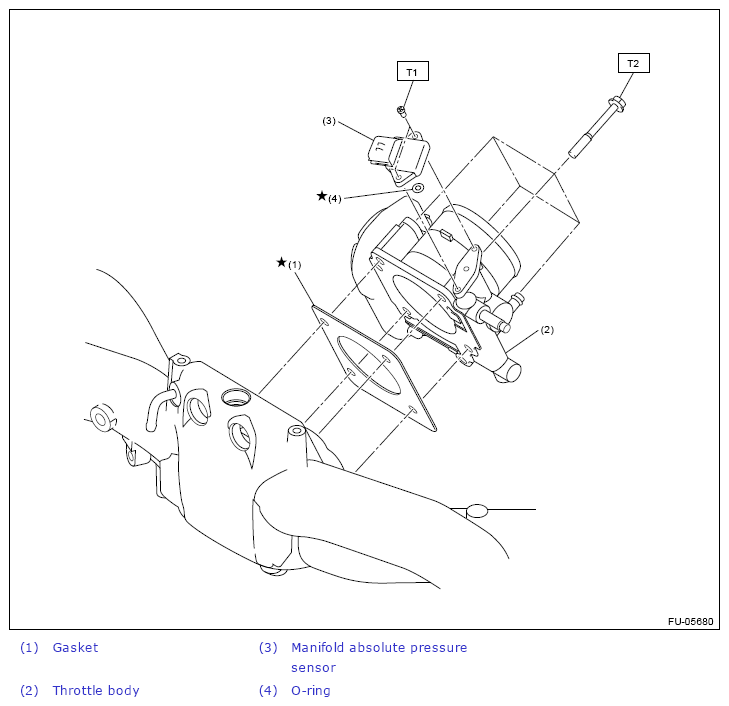

Fig 1: Air Intake System Of Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 8 (0.8, 5.9)
