Home >> Subaru >> 2020 >> Forester Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Injection System >> General Description >> Components With Torque Specifications >> Fuel Line 1

Fuel Line 1

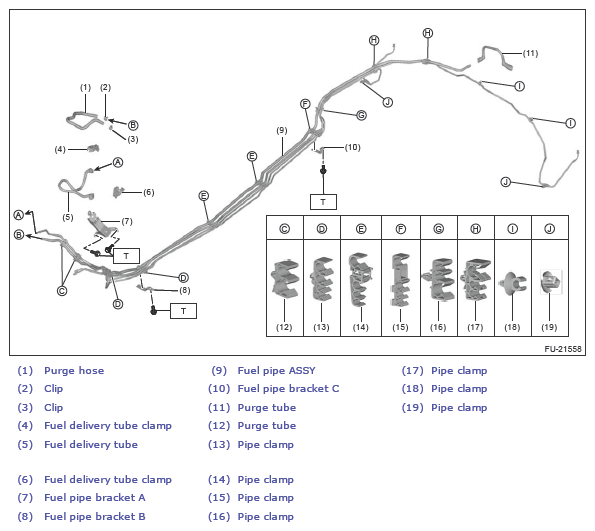

Fig 1: Fuel Line 1 Components Location

G13590133

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
