Intake Side

RH SIDE

Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .
Remove the air intake duct (rear).
Refer to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .

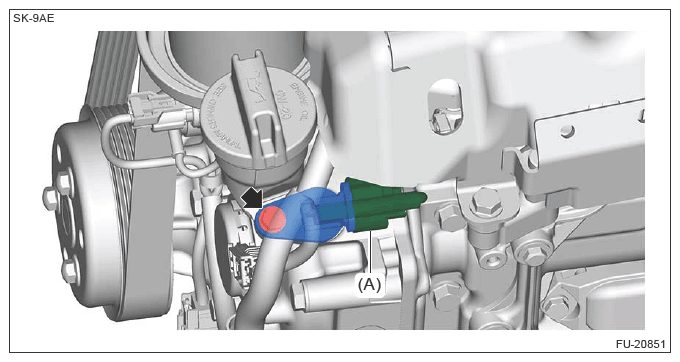

Disconnect the connector (A) and remove the camshaft position sensor.

Courtesy of SUBARU OF AMERICA, INC.

LH SIDE

Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .

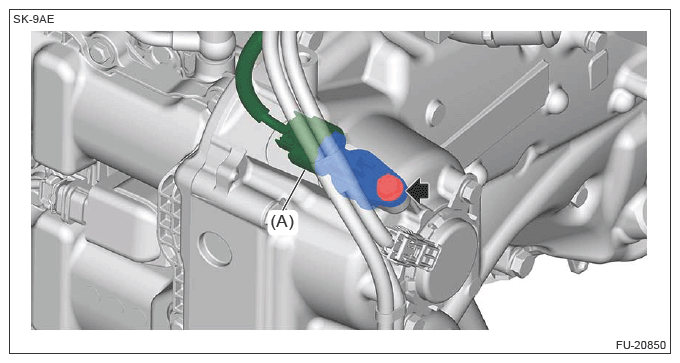

Disconnect the connector (A) and remove the camshaft position sensor.

Courtesy of SUBARU OF AMERICA, INC.
