Fuel Delivery and Evaporation Lines: Removal: Notes

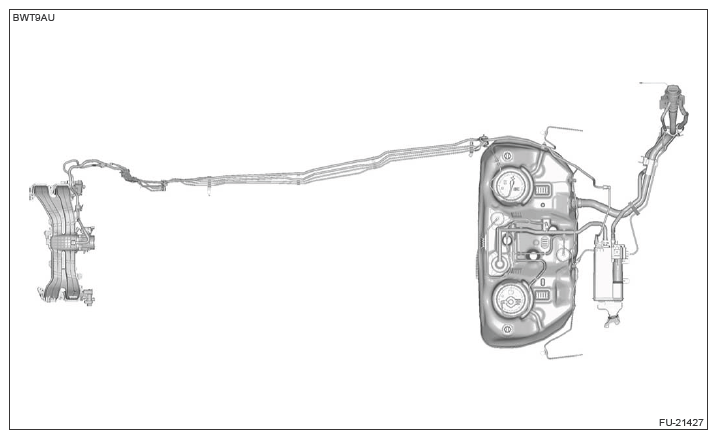

G13618627Courtesy of SUBARU OF AMERICA, INC.
WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION: Be careful not to spill fuel.
  1. Release the fuel pressure. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  4. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  5. Remove the fuel delivery tube clamp from the fuel delivery tube.
    G13618531Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .
    G13618532Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the evaporation hose from the fuel pipe assembly.
    G13618630Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the connector from the fuel pipe bracket A.
    G13618631Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.
  10. Remove the bolts securing the fuel bracket A, and remove the pipe clamp from the fuel pipe assembly.
    G13618632Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the fuel tank, Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Tank>REMOVAL .
  12. Remove the fuel delivery tube from the fuel tank. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .
  13. Disconnect the purge tube from the fuel pipe assembly, Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E)
    G13618633Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the under cover rear RH. Refer to EXTERIOR/INTERIOR TRIM>Floor Under Protector>REMOVAL .
  15. Disconnect the brake hose and the brake pipe.

    Brake hose:

    Refer to BRAKE>Brake Hose>REMOVAL .

    Brake pipe:

    Refer to BRAKE>Brake Pipe>REMOVAL .

  16. Remove the bolts securing the fuel pipe bracket B and the fuel pipe bracket C, and remove the pipe clamp from the fuel pipe assembly.
    G13618634Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the fuel pipe assembly.
    G13618635Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the fuel sub delivery tube.
    1. Remove the fuel pump assembly, Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Pump Assembly>REMOVAL .
    2. Remove the fuel sub level sensor. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Sub Level Sensor>REMOVAL .
    3. Remove the fuel sub delivery tube from the fuel tank.
