Auto Start Stop System (Diagnostics)
>>
Electrical Component Location
>>

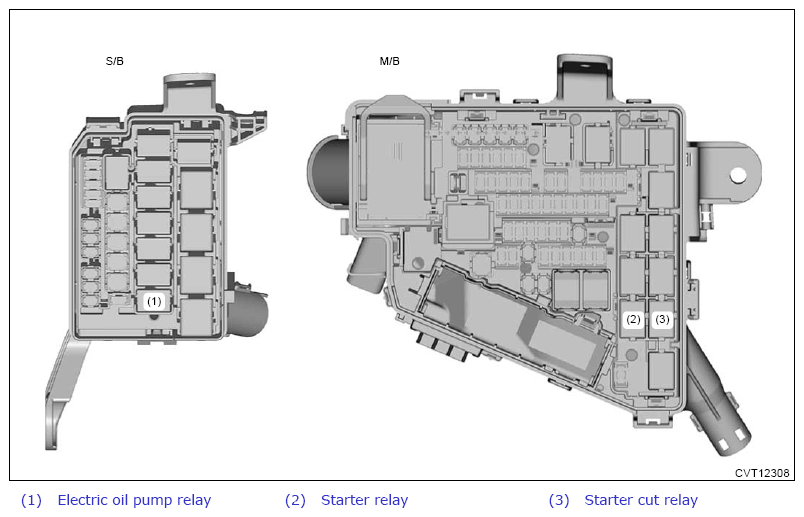

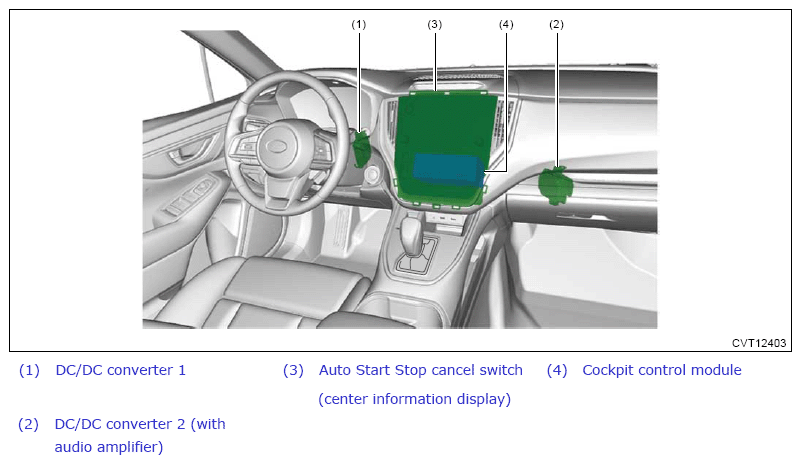

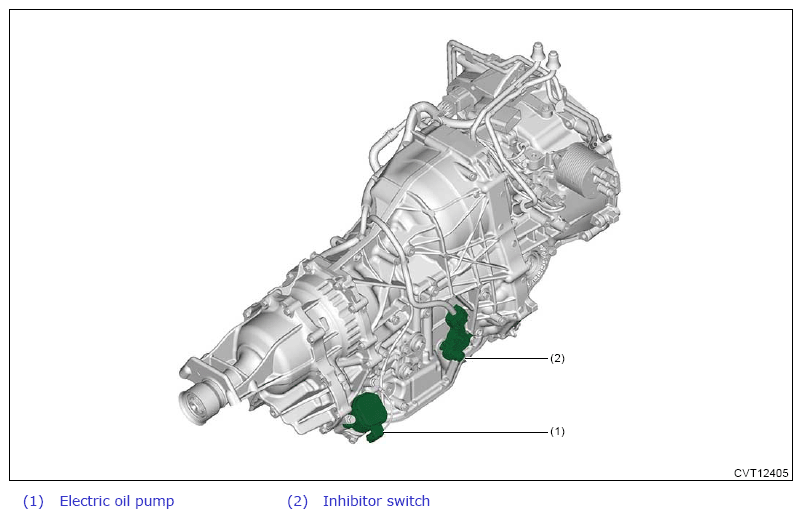

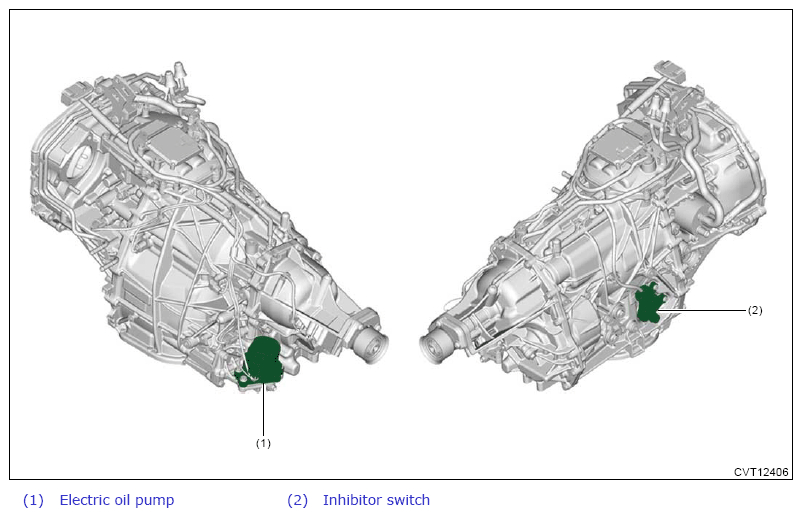

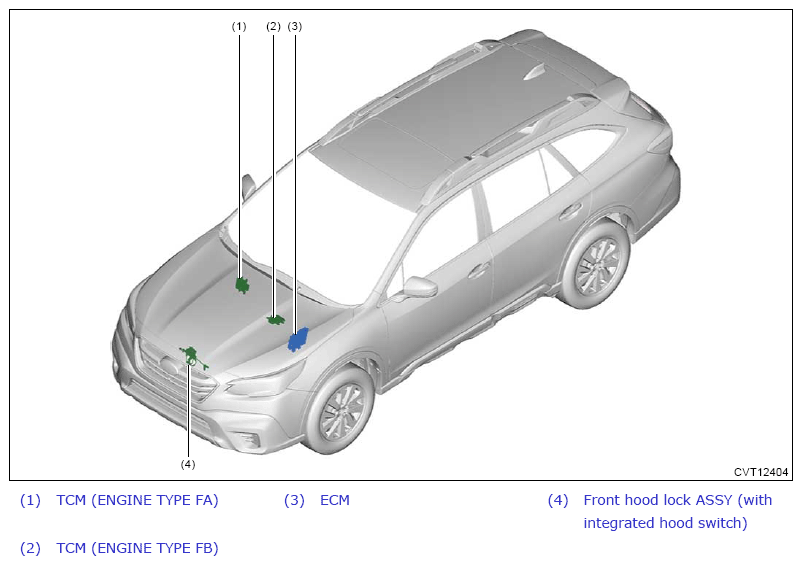

Location
Auto Start Stop System (Diagnostics): Electrical Component Location: Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE FA
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
