Exhaust System: Muffler: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

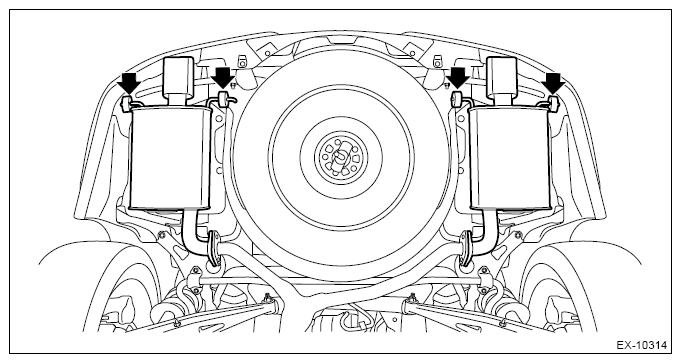

1. Disconnect the rear exhaust pipe and muffler.
   CAUTION: Be careful not to let the muffler contact the rear bumper.

   Courtesy of SUBARU OF AMERICA, INC.

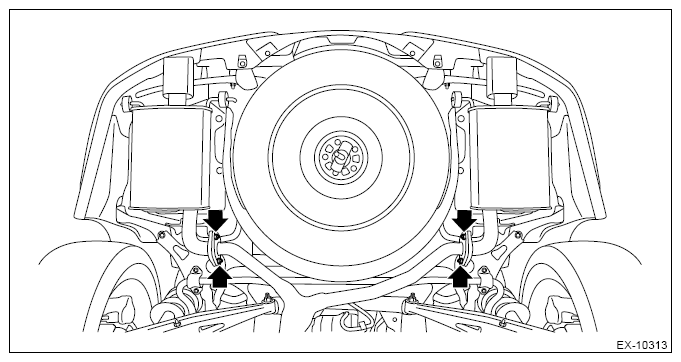

2. Apply a coat of spray type lubricant to the mating area of cushion rubber, and remove the muffler.

   Courtesy of SUBARU OF AMERICA, INC.

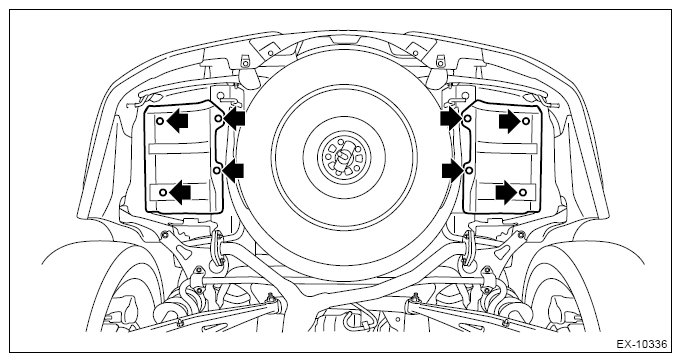

3. Remove the rear exhaust cover.

NOTE: Remove if necessary.

Courtesy of SUBARU OF AMERICA, INC.
